IP09C

Ethernet Extender over Coax

  • Extends IP signal over a coaxial cable
  • Signal extension up to 800M over a RG59/ 6U coaxial cable
  • Bandwidth up to 100Mbps
Inquiry

As a manufacturer, we value the profit of our clients and do not have any online store. You can get the unpublished price from us through the inquiry button.

SEE other models
Inquiry

IP09C is an IP extender that can use a single coaxial cable to send TCP/IP signals to a remote IP-enabled device, with a transmission distance of up to 800M and bandwidth of up to 100Mbps. Furthermore, since IP09C can send IP signals over coaxial cables, you can change your old analog cameras to IP cameras without replacing the existing coaxial cables, which saves much labor and cost.

Ethernet Extender That Makes the Most of Your Coaxial Cables

The ethernet over Coax technique is used to transmit IP signals over coaxial cables.

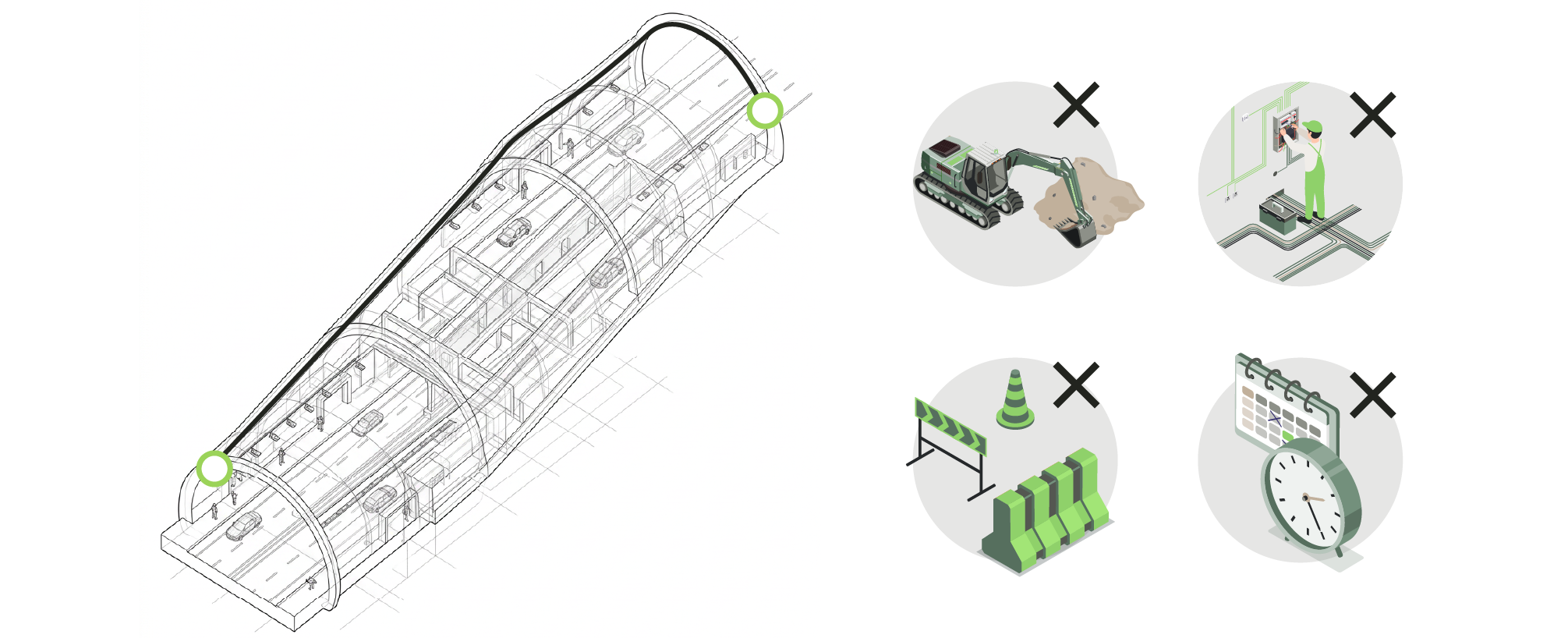

Make the Existing Coaxial Cables Useful in IP Environment

What is Ethernet over Coax? Why You Should Use an IP/PoE over Coax Extender

Ethernet over coax is the technology that supports the transmission of Ethernet via coaxial cables. PoE over Coax is the technology to transmit power and data simultaneously over a coaxial cable. The development of these techniques helps installers to send IP/PoE signals in an easier, faster, and cost-effective way without the need to replace the existing coaxial cables.

Real-Life PoE over Coax Application

Case study of Ethernet over Coax extenders used to extend PoE cameras.

PoE over Coaxial Cables

IP09C series allows you to upgrade CCTV cameras from analog to PoE using the existing coaxial cables. Click the button below to explore how it can considerably save your time and budget.

Utilize Coaxial Cables in IP Environment

Ethernet Extender over Coax model.
IP09C, IP09CP

While coaxial cables cover everywhere, you can take advantage of them to transmit IP/PoE signals, and SC&T's IP09C series is the easiest way for you to achieve this goal. This series includes IP09C (EoC version) and IP09CP (PoC version) and supports up to 100Mbps and up to 90W of power over up to 800m cable run.

Application Diagram

IP09C (Tx & Rx Require Power Adapters)
IP camera & Ethernet extender over Coax installation diagram.

IP09CP (Rx Requires Power Adapter)
PoE camera & PoE extender over Coax installation diagram.

IP09CP (Tx Requires Power Adapter)

Transmission Performance

Ethernet over Coax extender transmission performance.

Power may vary by the transmission distances and cable types, such as RG59/ RG6U.

  • Within 500m, bandwidth remains 100Mbps (power from Rx)
  • Over 500m, bandwidth remains 10Mbps (power from Rx)

Ethernet over Coax Models

IP09C is the non-PoE Ethernet Extender over Coax. You can choose the most suitable model, IP or PoE version, for your project in the IP09C series.

Ethernet over Coax extender comparison.
Model Comparison

Flexible IP09PH PoE Switch

PoE Switch that works with PoE Extender/IP Extender over Coax.
IP09PH

SC&T's latest product, IP09PH, is a 4-port PoE switch that can perfectly work with IP09C and IP09CPR. With the extending PoE switch, you can easily use one single coaxial cable to carry up to 4 PoE signals for remote PoE cameras.

More Combinations of Models

IP09C series models include:

  • PoC/EoC version
  • 1-port/4-port version

Every model can work with each other to meet different requirements.

Various combinations of Ethernet over Coax extender models.

More Budget-Saving Solutions

SC&T also has a series designed for IP/PoE extension over a regular Ethernet cable. Click the button below for more details about the IP09 series.

SP009P - HD-TVI/AHD/HDCVI/CVBS POC (Power over Coax) Surge Protector

CCTV Surge Protector Coax
SP009P

SP009P is a surge protector that supports PoC, protecting not only HD-TVI, AHD, HDCVI, CVBS devices but also IP/ PoE over coaxial devices.

Model

HKM02BP-4K

HKM02B-4K

HKM02B

VDKM02B

Video Format

HDMI

HDMI

HDMI

VGA/DVI

Resolution

4K@30Hz

4K@30Hz

1080p@60Hz

1080p@60Hz

Audio Embed & Extract

V

V

V

V

IR

V

V

V

V

RS232

V

V

V

V

PoE

V

Fiber Module

V

V

  • Signal extension up to 800M over a RG59/6U coaxial cable.
  • Bandwidth up to 100Mbps.

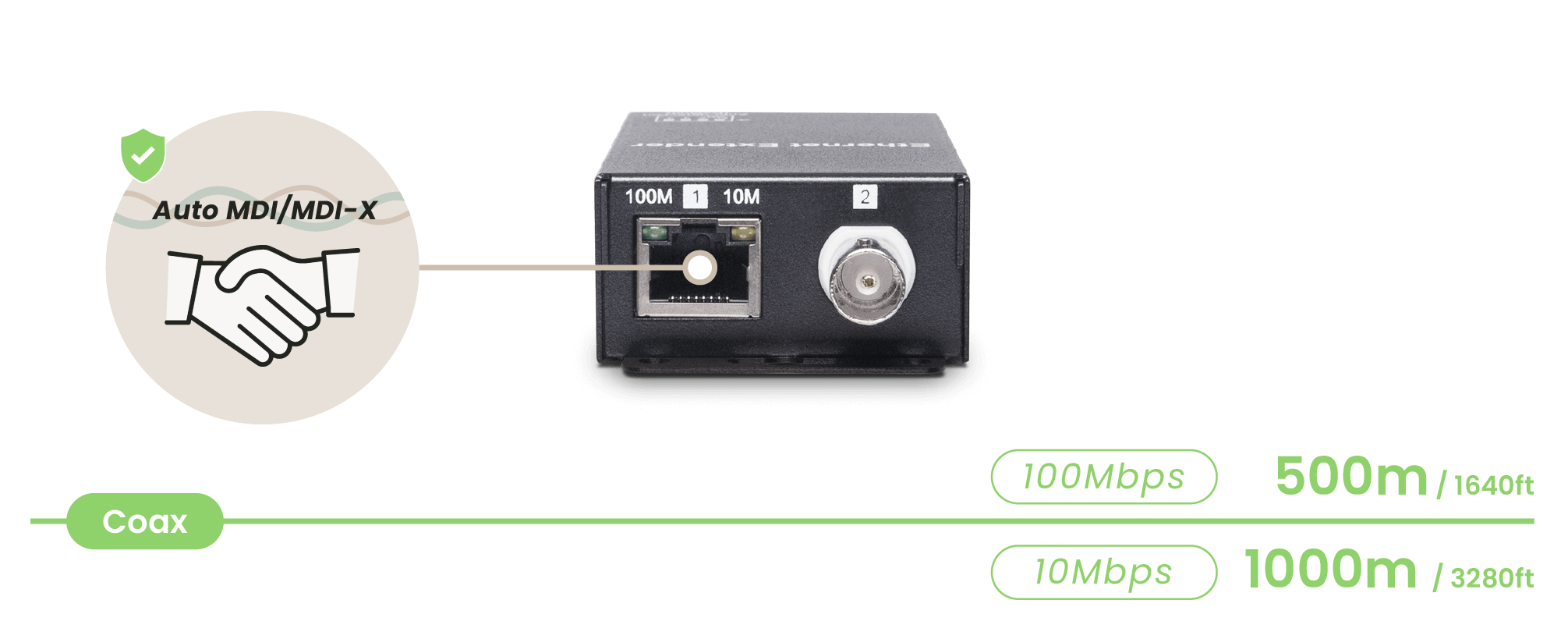

  • Supports Auto MDI/MDI-X.
  • Supports Full duplex and half-duplex mode.
  • Supports EEE Energy-Efficient Ethernet.

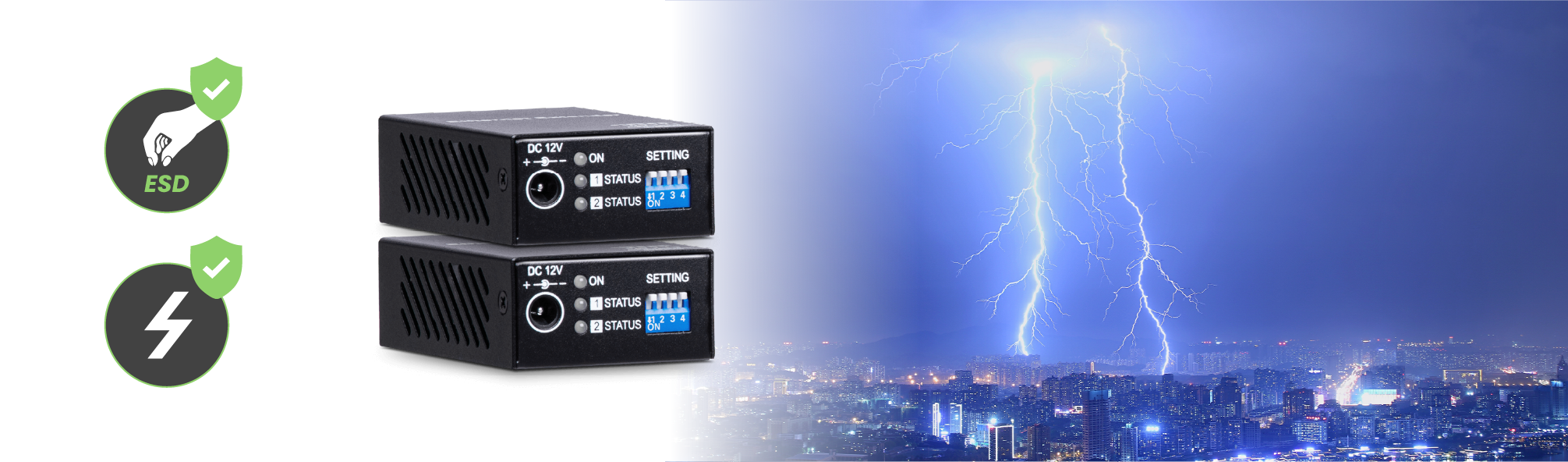

  • Built-in 30KV (ESD) and 30A (Lightning) surge protection on BNC port.
  • Built-in 1.5KV (Line to Line) surge protection on RJ45 port.

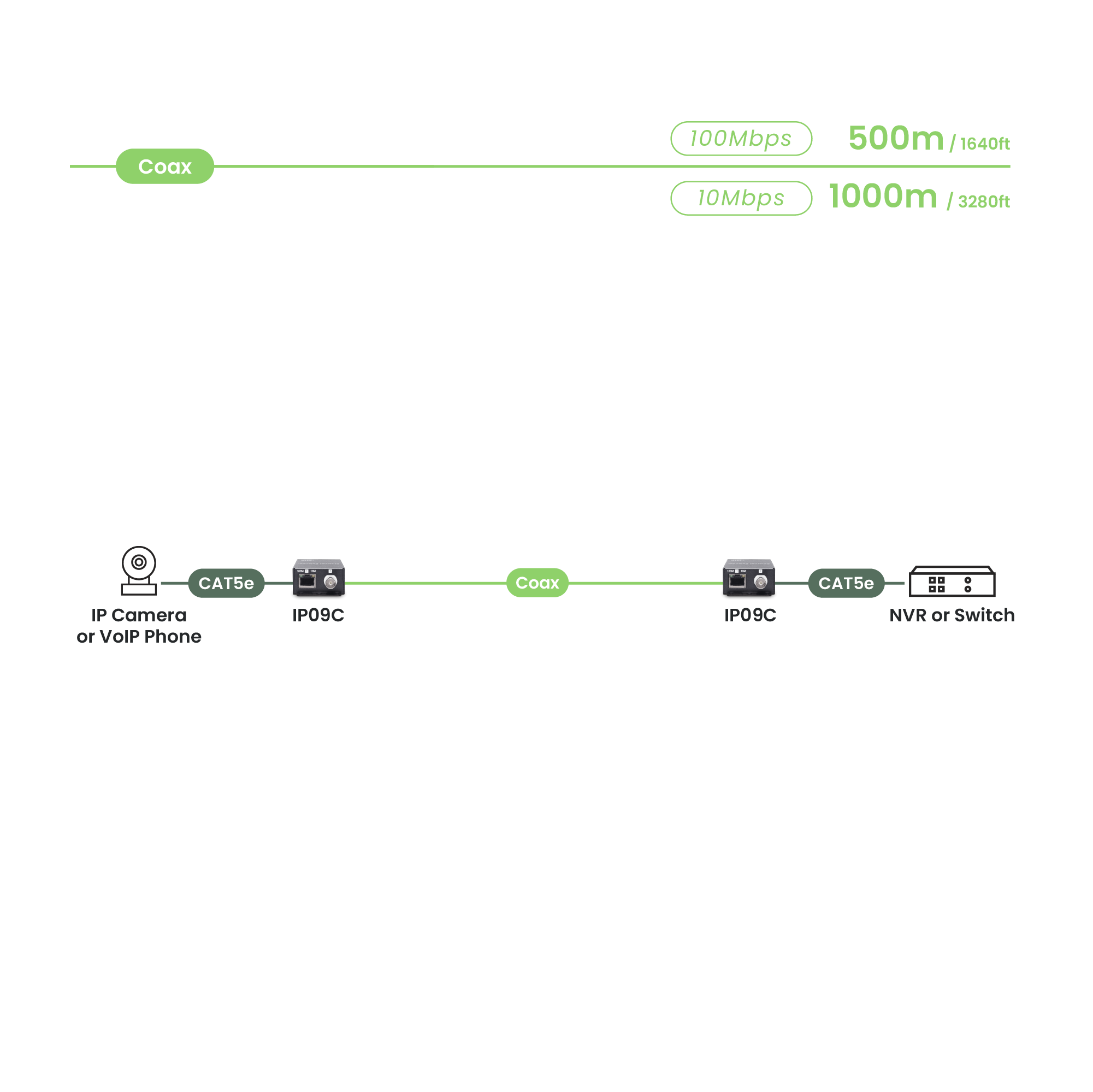

Point to Point Transmission
IP extender over coax installation diagram

Long Distance for Multiple Cameras Transmission
IP extender over coax installation diagram

Extra Long Extension by Connecting with IP09
IP extender over coax and PoE switch installation diagram
Firmware/Software

Release Date

Ver.

Release Note

File Name

No items found.
Tutorial Video

Show More
icon

Specification

ITEM NO.

IP09C

Support

Compliance

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3bw 100BASE-T1 Ethernet
IEEE 802.3 Nway Auto-Negotiation
IEEE 802.3x Full Duplex Operation And Flow Control
IEEE 802.3az Energy Efficient Ethernet

Network Bandwidth

10/ 100Mbps

Transmission Distance

1000M at 10Mbps, 500M at 100Mbps

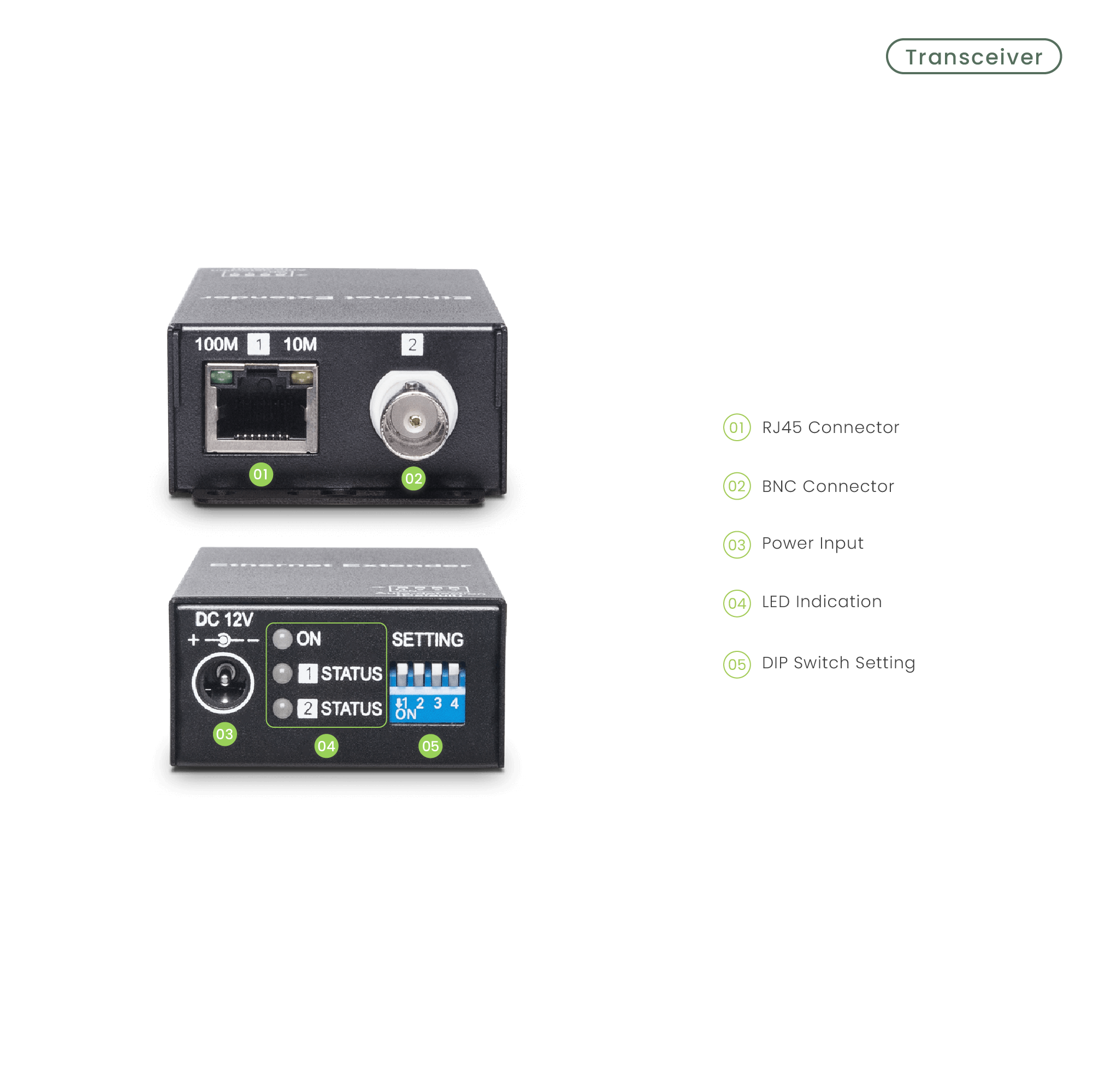

Ports & Interfaces

Ethernet Interface

1 x RJ45

Link Interface

1 x BNC

Power Interface

2 x (2mm) DC Jack

Show More
