4K HDMI KVM & USB, RS232 , IR, Audio over IP Extender with PoE

HKM02BP-4K uses AV over IP technology to route up to 1,000 4K HDMI sources to up to 60,000 displays over IGMP and Jumbo frame protocol gigabit switches, which can achieve HDMI signal extending, distributing, switching and routing. Additionally, the boundless switching function allows you to use one mouse to operate multiple PCs by moving the mouse cursor across the monitors' borders. HKM02B-4K is a multifunctional system that integrates multiple media. You can perfectly apply it to large-scale security rooms, classrooms, trading rooms, and many more.

Resolution up to 4K@30Hz 4:4:4
Signal extension up to 150M over CAT5e (or greater), 60KM over fiber optic cable.
Workable with Ethernet switches for HDMI extension, distribtuion, switching, and matrix.
Supports PoE (Power over Ethernet), up to 15W for power input.
Built-in loop-out port for an extra local HDMI display at TX side.
Built-in 4 USB ports for remote control.

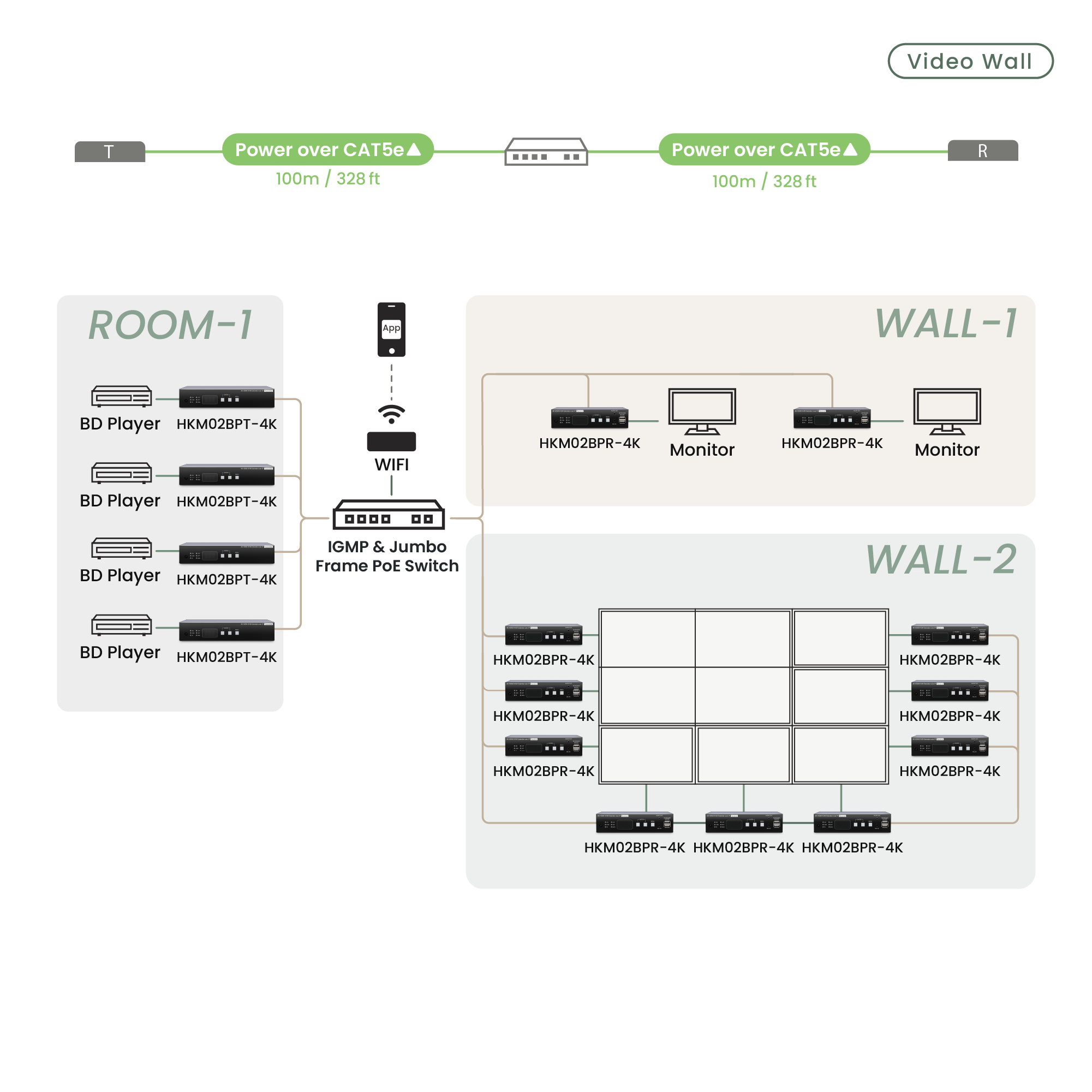

Supports up to 8 x 16 video wall.
Supports video scaler, 4K to 1080p/ 1080p to 4K.
Supports HDMI audio embedding and extraction function.

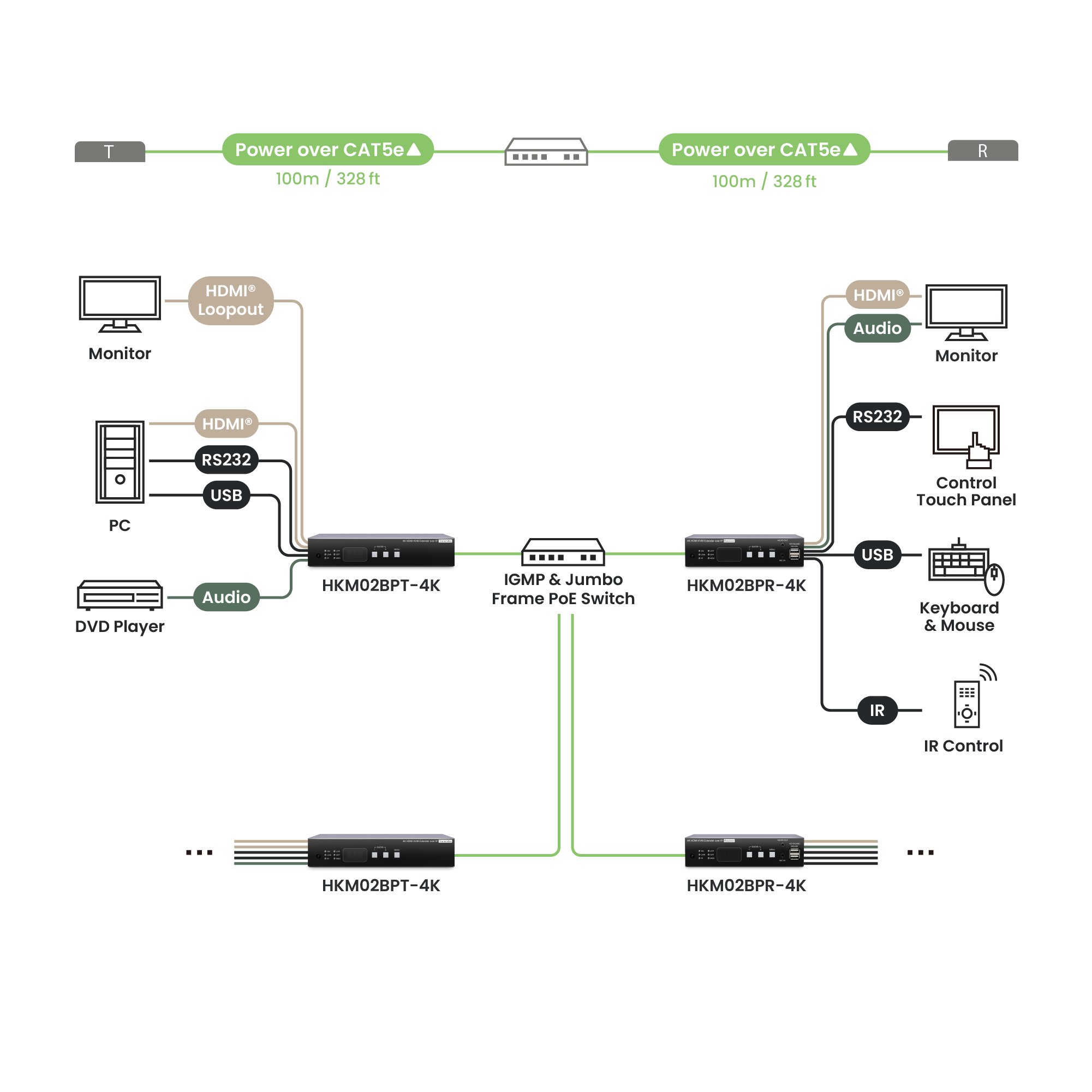

Supports USB, full-duplex RS232, bi-directional IR, analog audio transmission.
Supports RS232 signal distribution.
Managed via Windows based software, Android/iOS APP, Web GUI, IR remote, panel pushbutton, Telnet API, RS232 console.

User Manual
HKM02BP-4K_User Manual_EN_V1.0_2010160.pdf

CAD

HKM02BPT-4K_CAD_EN_V1.0_2010160.pdf

HKM02BPR-4K_CAD_EN_V1.0_2010160.pdf

Marketing Material

Firmware/Software

Release Date

Ver.

Release Note

File Name

No items found.

Tutorial Video

Show More

Specification

ITEM NO.

HKM02BT-4K

HKM02BR-4K

Support

Compliance

HDCP 2.2, USB 1.1, USB 2.0

Max. Video Resolution

4K@30Hz 4:4:4

Max. Transmission Distance

150M over CAT5e Cable or Greater

Audio Format

7.1 LPCM 192kHz, Dolby True HD, DTS-HD Master Audio, ATMOS, DTS:X

IR Support

20-60kHz , ±45°, 5M

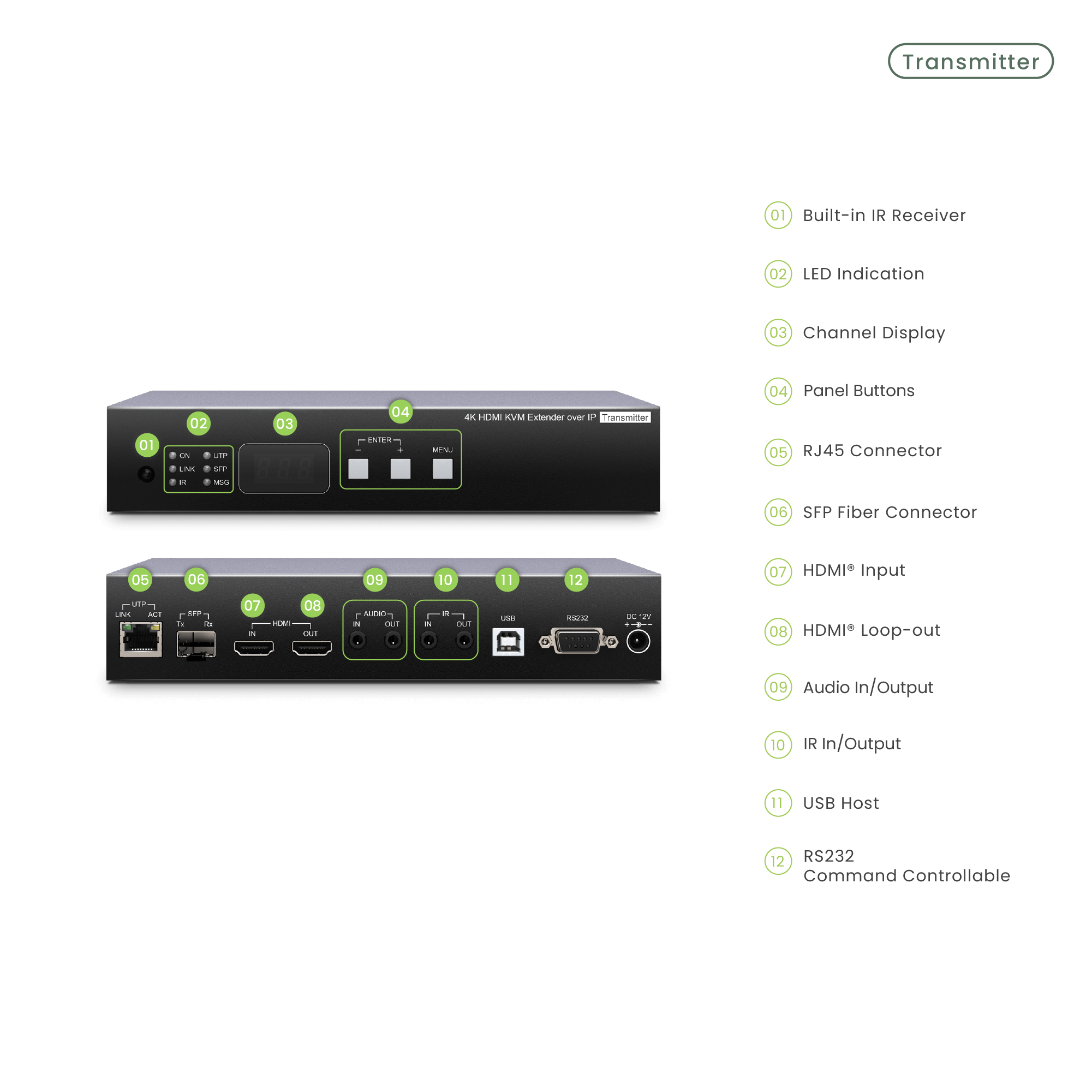

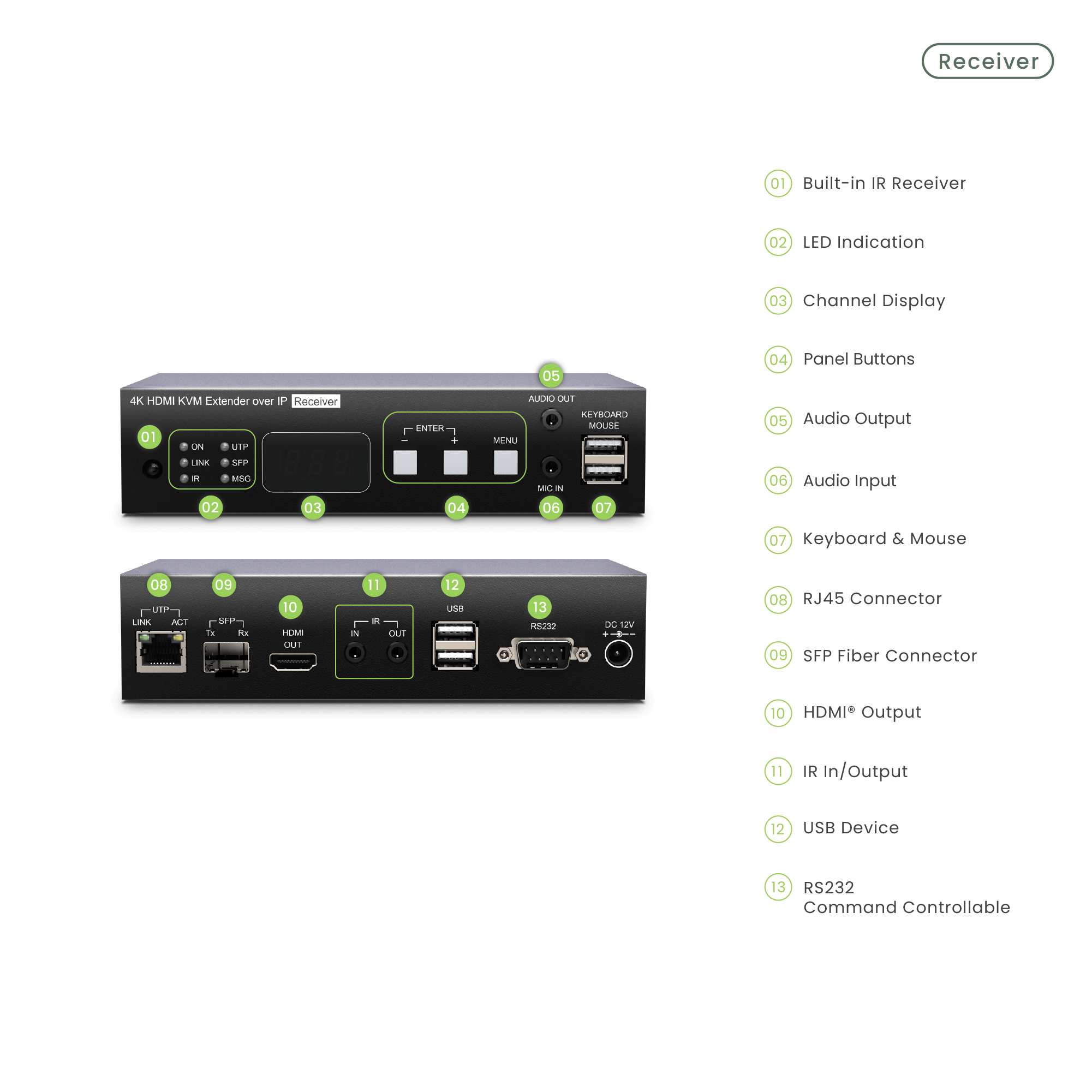

Ports & Interfaces

Video Input

1 x HDMI Type A

1 x RJ45

Video Output

1 x RJ45

HDMI Type A

Video Loop-out

1 x HDMI Type A

Analog Audio Input

1 x 3.5mm Stereo Phone Jack (Line In)

1 x 3.5mm Mono Phone Jack (Mic In)

Analog Audio Output

1 x 3.5mm Stereo Phone Jack (Line Out)

USB Interface

1 x USB Type B (USB 2.0)

2 x USB Type A (USB 1.1)
2 x USB Type A (USB 2.0)

IR Interface

1 x 3.5mm Stereo Phone Jack

RS232 Interface

1 x DB9 Female

1 x DB9 Male

Link Interface

1 x RJ45, 1 x SFP
