AE02GL

Stereo Audio Ground Loop Isolator

  • Elimates audio signal Interference.
Inquiry

As a manufacturer, we value the profit of our clients and do not have any online store. You can get the unpublished price from us through the inquiry button.

SEE other models
Inquiry

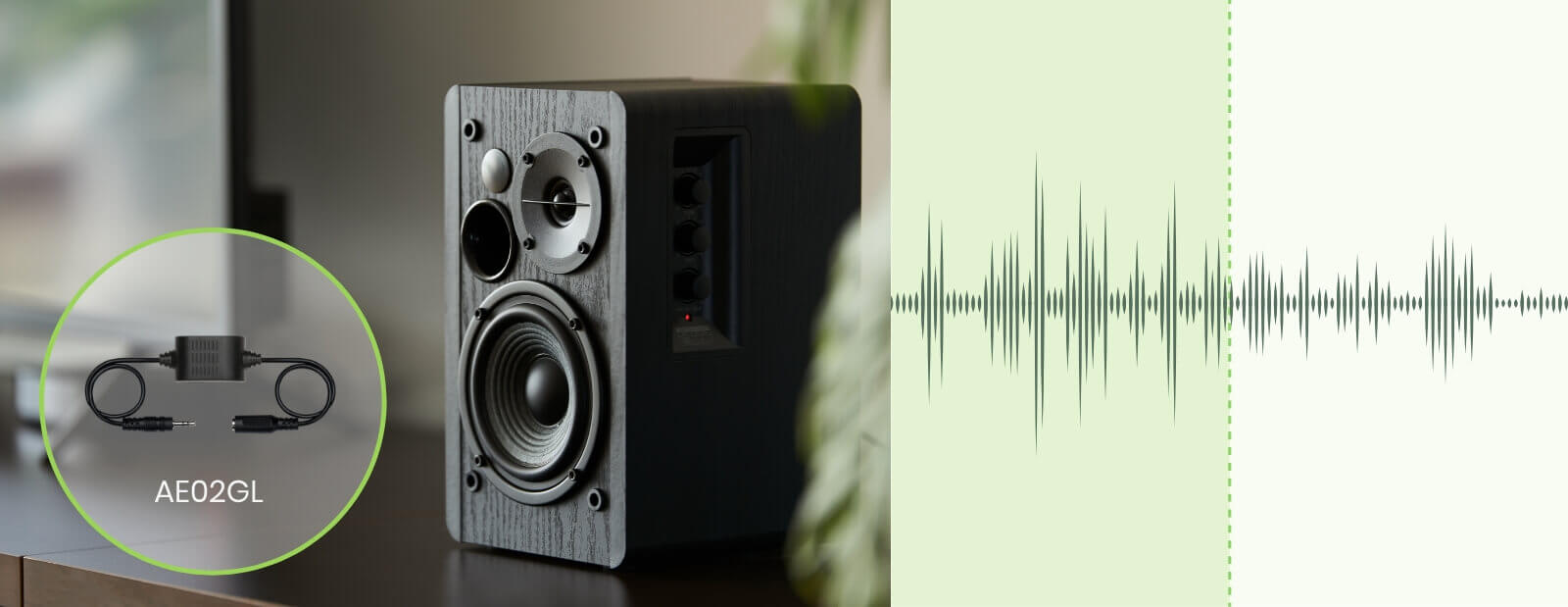

AE02GL is an audio ground loop isolator designed to reduce signal interference caused by voltage potential differences at the ground points between two devices.

The Easiest Way to Eliminate Ground Loop Noise

What is a ground loop isolator?  A ground loop noise isolator is designed to fix ground loop hums and noise.

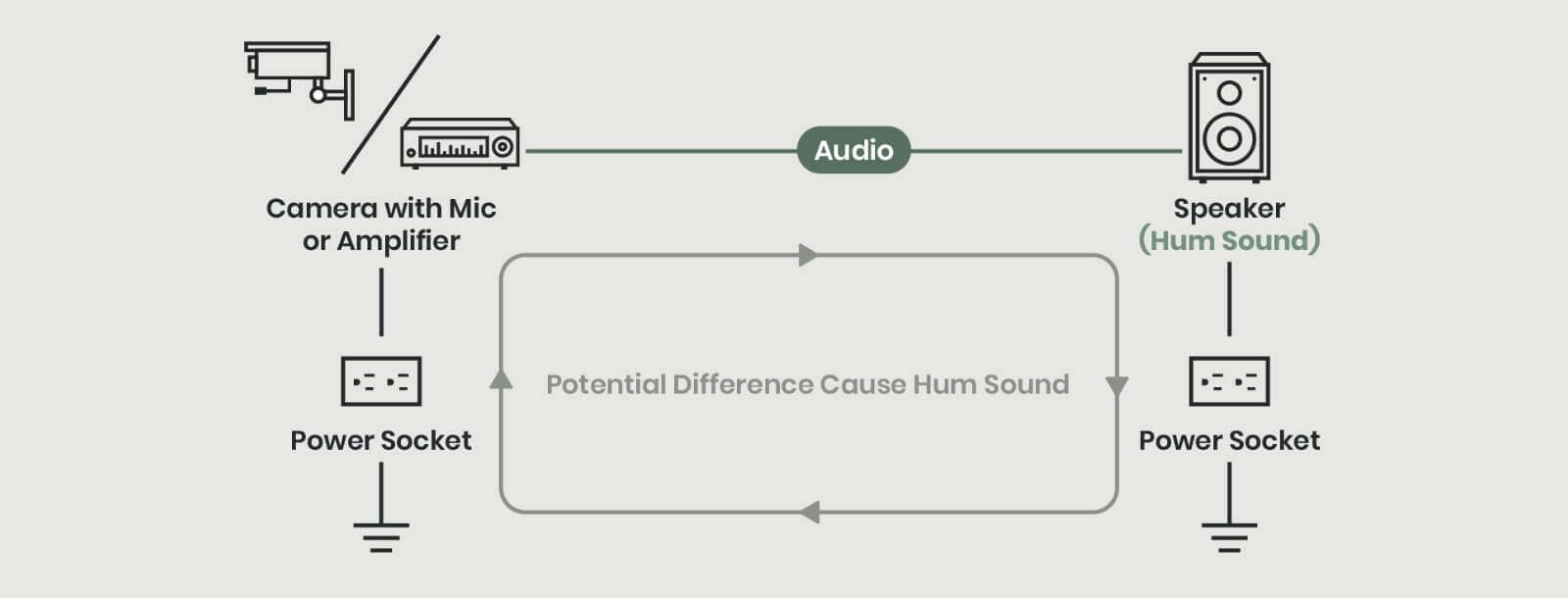

What Causes a Ground Loop?

Ground loops are a major cause of interference in audio and video systems. This is because when enough current is flowing in the connection between the two ground points that have different potentials, a ground loop is created to produce noise and hum sound in your audio system.

What Causes a Ground Loop? What is a Ground Loop?

How to Fix Ground Loop Hum

To solve the issue, the ideal solution is to have the same ground reference potential between all connected devices. However, most of the professional installations do not have the condition to do it due to complicated cabling and wiring.

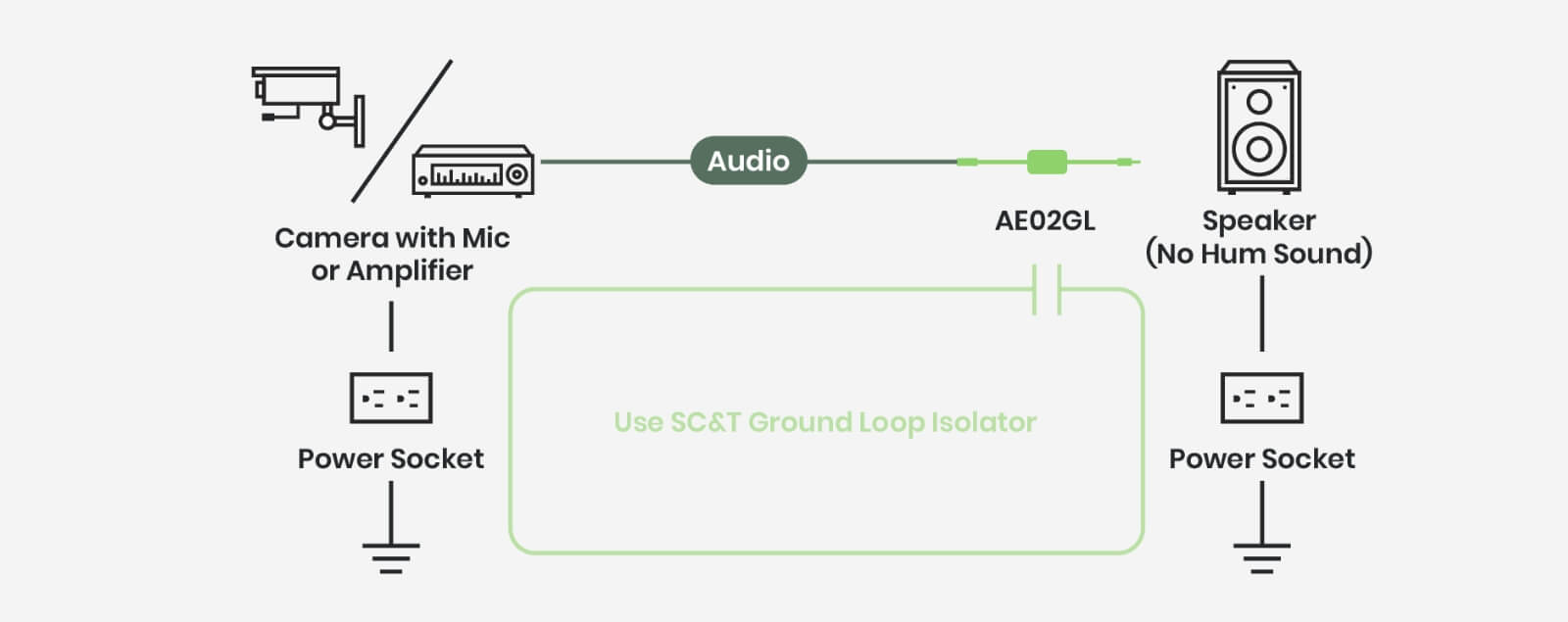

Use SC&T's Ground Loop Isolator

Other than connecting a common ground, a ground loop isolator is another option. It uses an isolation transformer to cut the current flowing into the circuit and the ground loop will not be created to interfere.

How to Fix Ground Loop Hum: An Audio Ground Loop Isolator can help

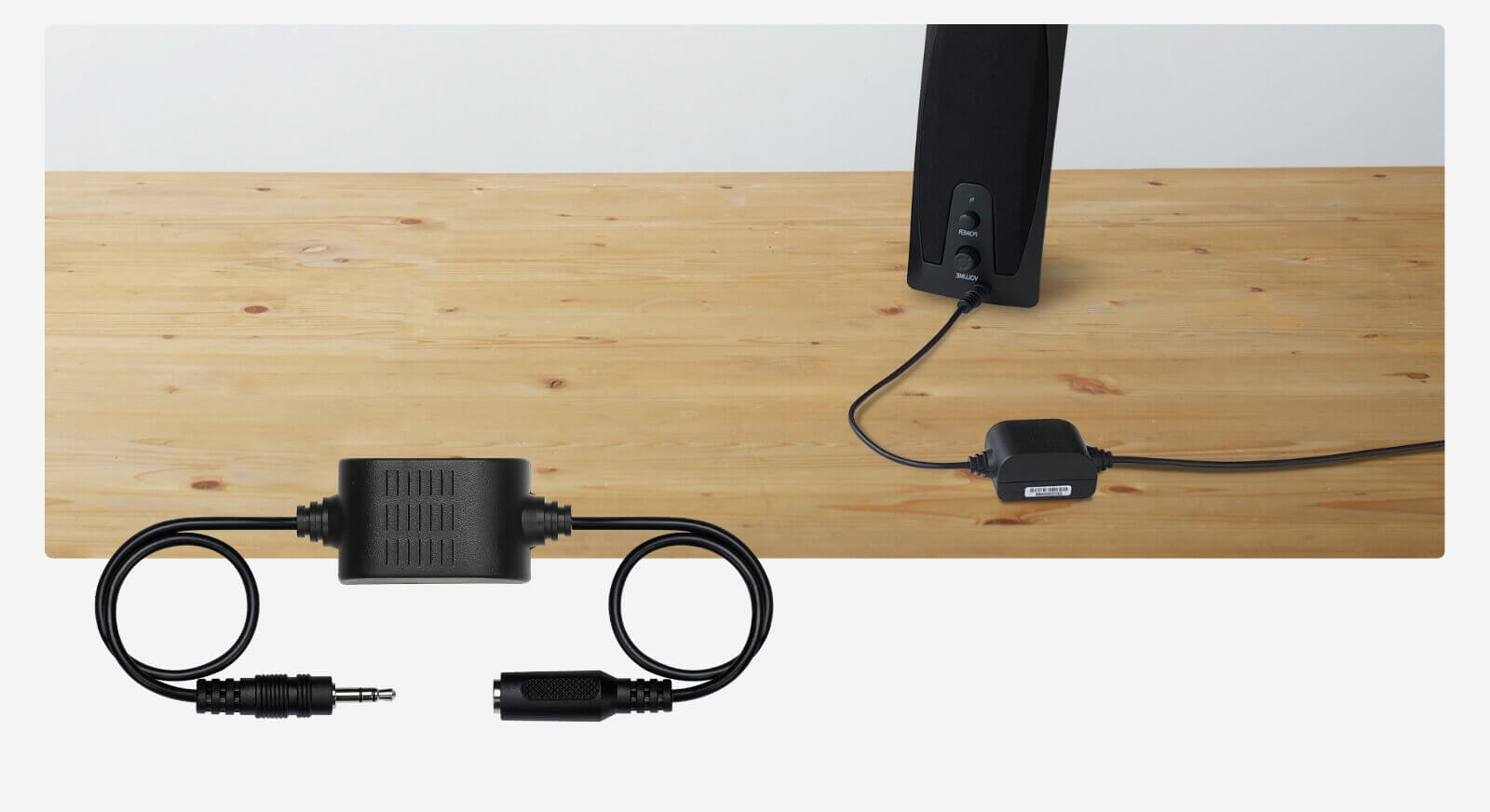

SC&T 3.5mm Audio Ground Loop Isolator

3.5mm Ground Loop Isolator Audio Tool; the best ground loop isolator to fix the hums.
AE02GL

AE02GL is one of our top sellers and has outstanding performance. It has successfully eliminated countless ground loop issues for our partners around the globe.

How to Install a Ground Loop Isolator

How to install a ground loop isolator. How does a ground loop isolator work?

Easily install it between a 3.5mm phone jack and an audio output device like microphones, and speakers to filter out the interference for CCTV/ audiovisual systems.

Ground loop noise isolator has a low insertion loss and is easy to install.

Low Insertion Loss

Insertion loss is the amount of energy that a signal loses as it travels along with a cable link. low insertion loss allows the signal to remain its performance with a slight reduction.

Time-Saving Installation

It's hard to identify the real problem causing the interference in a professional and complicated A/V environment but AE02GL can effectively solve the problem by plug and play.

Video Ground Loop Isolator Series

There're types of ground loop isolators that can deal with not only audio but video interference, so it's important to select the right device to solve the real problem.

Ground Loop Isolator CCTV, Camera Interference/Video Ground Loop Isolator

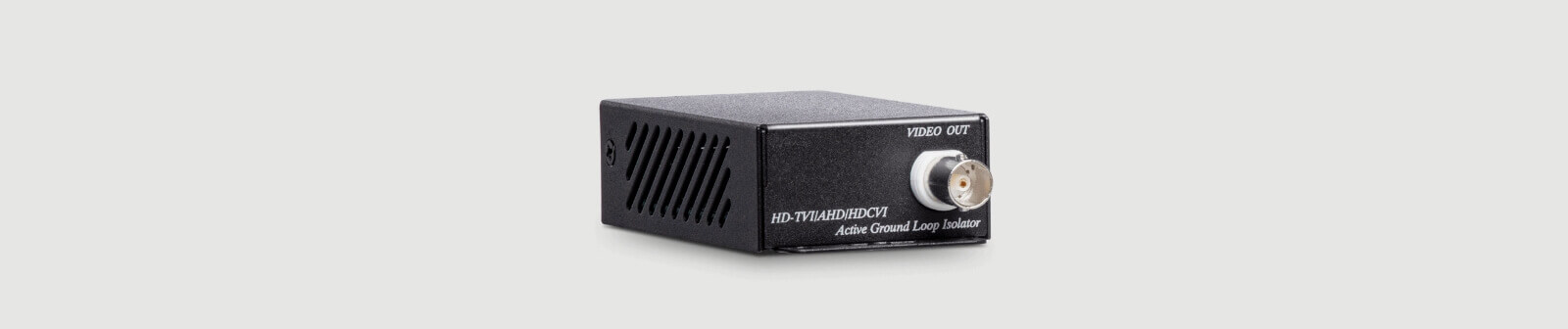

Active HD-TVI/AHD/HDCVI/CVBS Ground Loop Isolator

Ground Loop Isolator CCTV, Camera Interference/Video Ground Loop Isolator

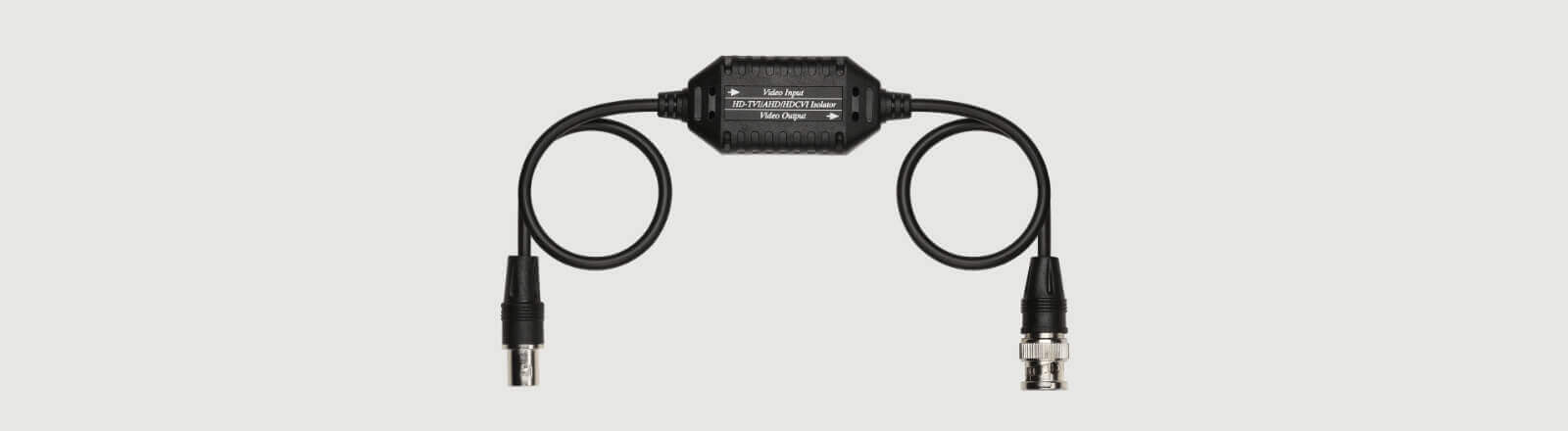

HD-TVI/AHD/HDCVI/CVBS Ground Loop Isolator

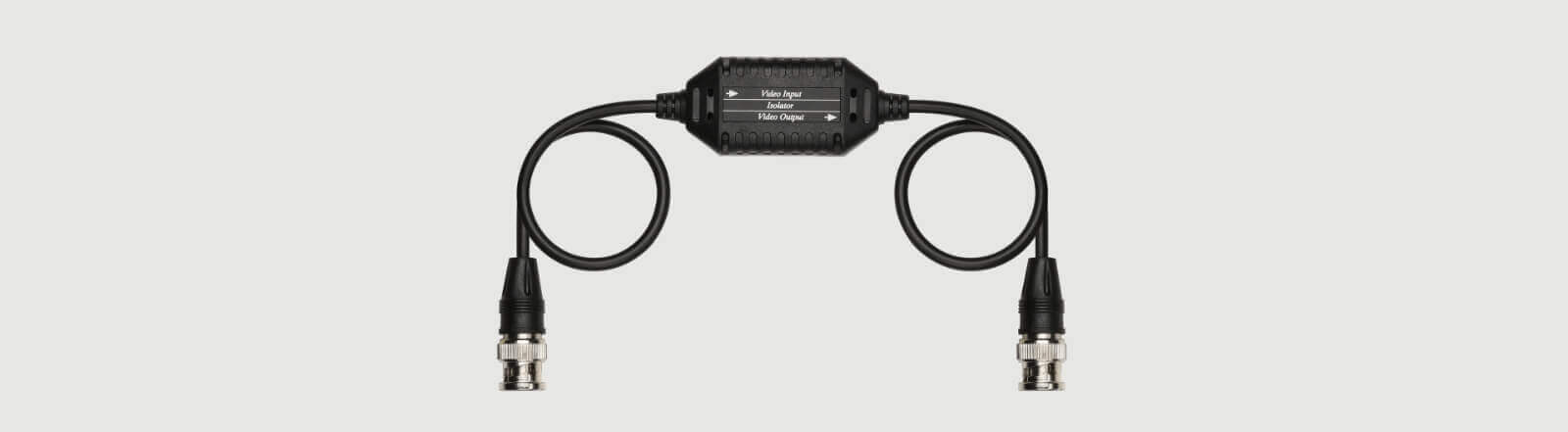

Video Ground Loop Isolator, BNC Ground Loop Isolator
High-Performance Video Ground Loop Isolator

How Does a Ground Loop Isolator Work?

For more effective ways to fix the hums and other questions about ground loops, you can check out our article here:

>> 4 Effective Approaches that Eliminate Video/Audio Ground Loop Interference

Model

HKM02BP-4K

HKM02B-4K

HKM02B

VDKM02B

Video Format

HDMI

HDMI

HDMI

VGA/DVI

Resolution

4K@30Hz

4K@30Hz

1080p@60Hz

1080p@60Hz

Audio Embed & Extract

V

V

V

V

IR

V

V

V

V

RS232

V

V

V

V

PoE

V

Fiber Module

V

V

  • Eliminates audio signal interference.
How to install a ground loop isolator connection diagram.
Firmware/Software

Release Date

Ver.

Release Note

File Name

No items found.
Tutorial Video

Show More
icon

Specification

ITEM NO.

AE02GL

Support

Audio Bandwidth

20 to 20KHz (-3dB)

Frequency

@Ref 600 Ohm: @300Hz= ±0.35dB, @4Khz= ±0.35dB

Insertion Loss

@1KHZ, 0dBm

Return Loss

@Ref 600Ohm:: @300HZ= 20dB Min., @1Khz-22dB  Min., @4Khz= 22dB Min.

Turn Ratio

@18Khz, 1Vrms

Audio Input Impedance

600 Ω,12.3 Vrms

Ports & Interfaces

Audio Input/ Output

1 x 3.5mm Phone Jack, 1 x 3.5mm Phone Plug
