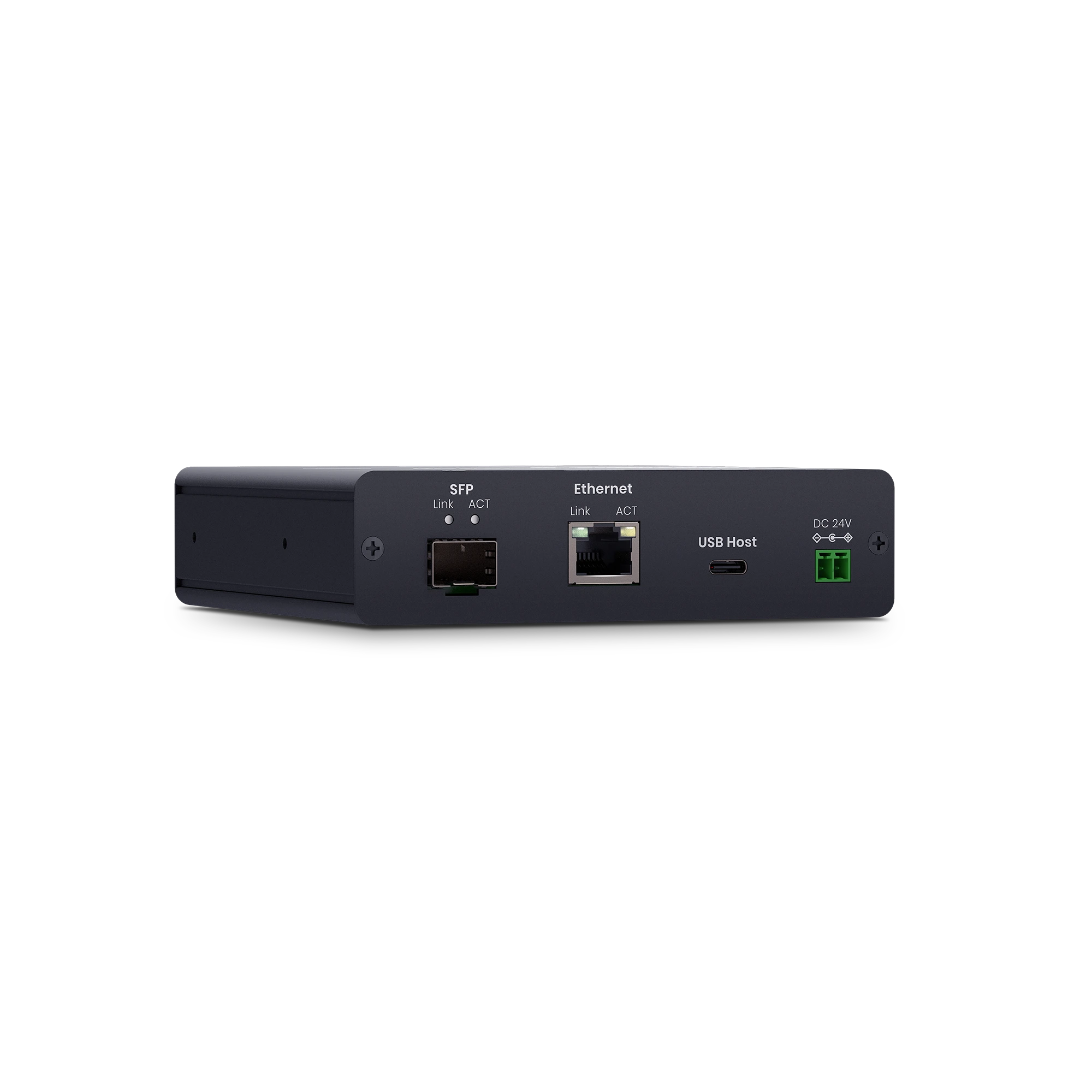

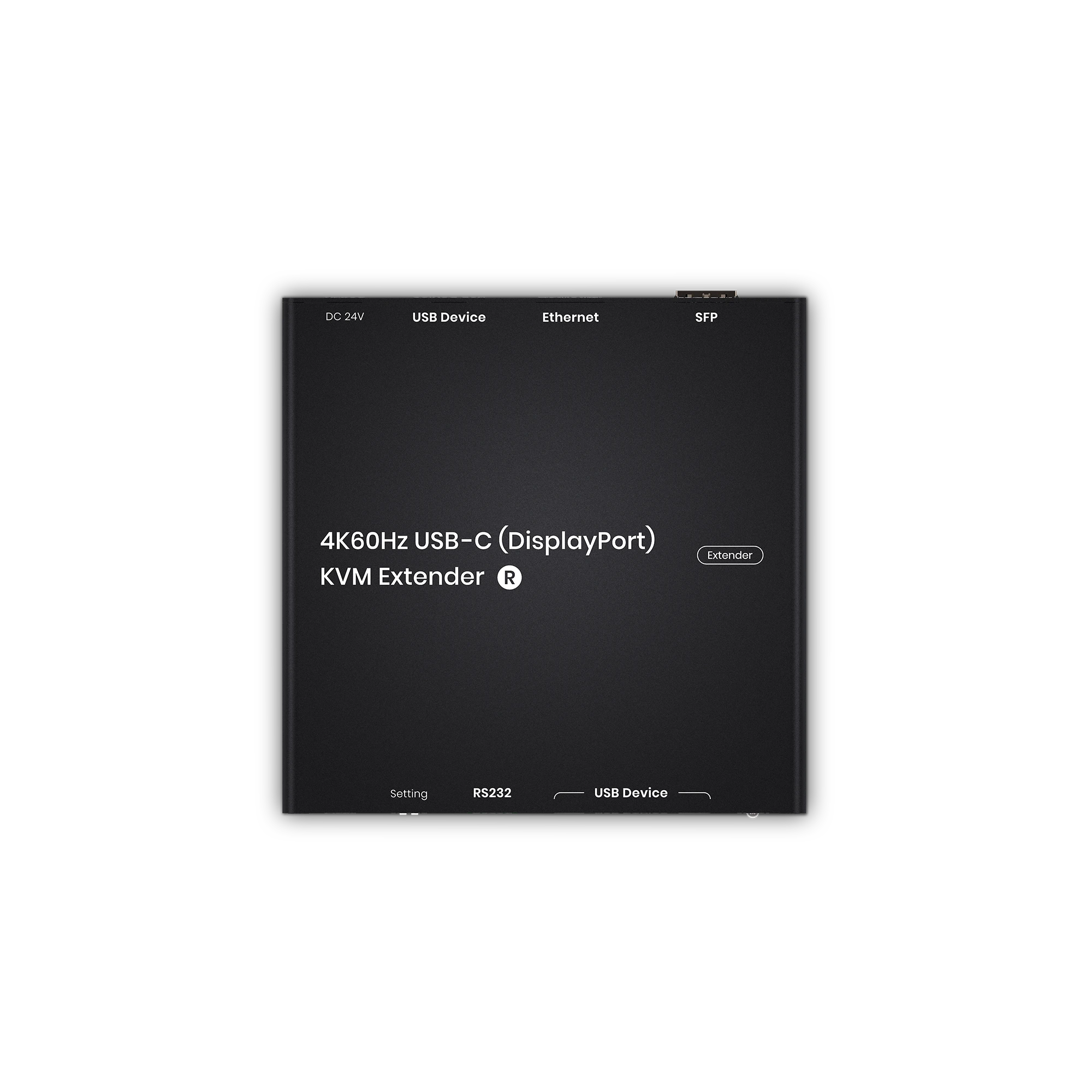

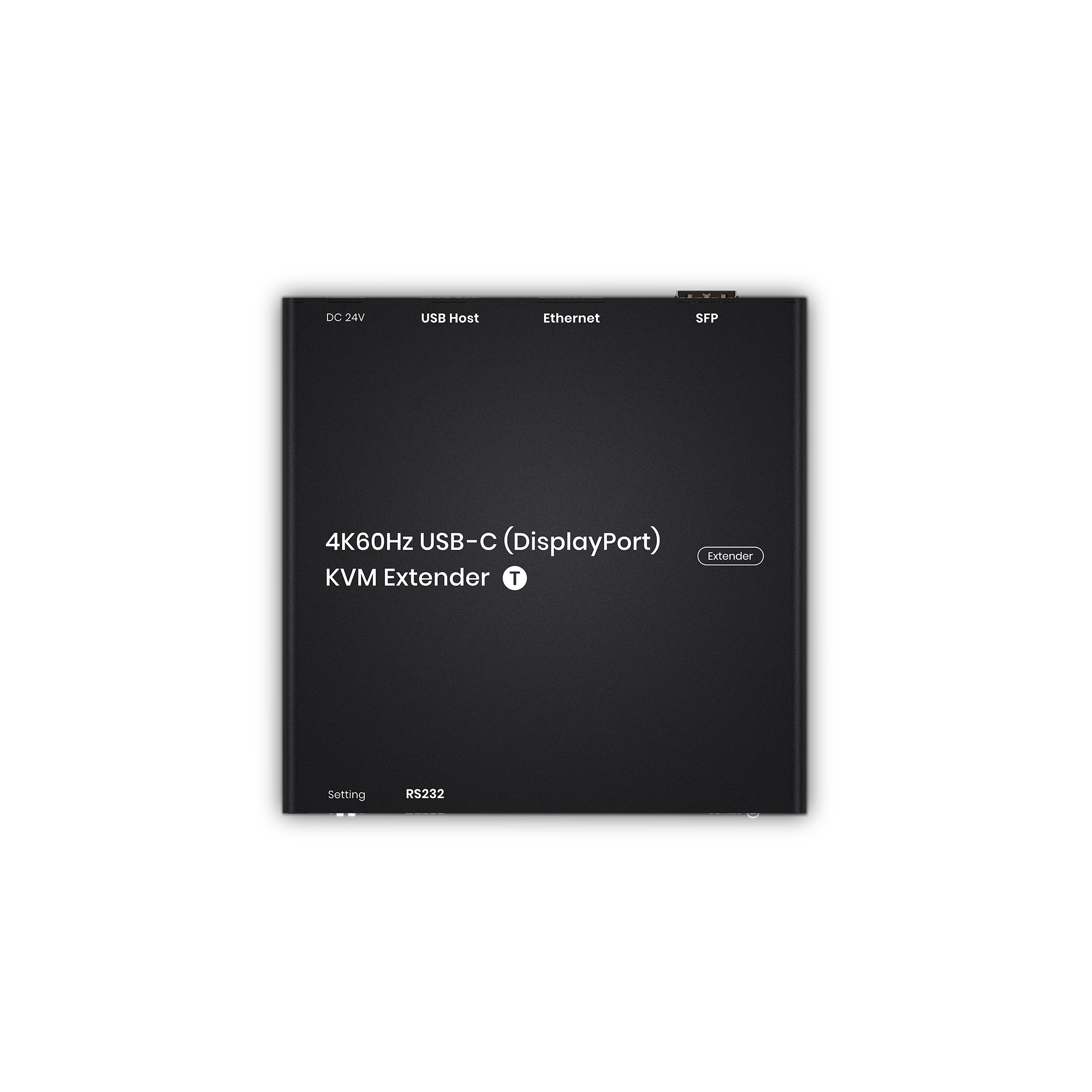

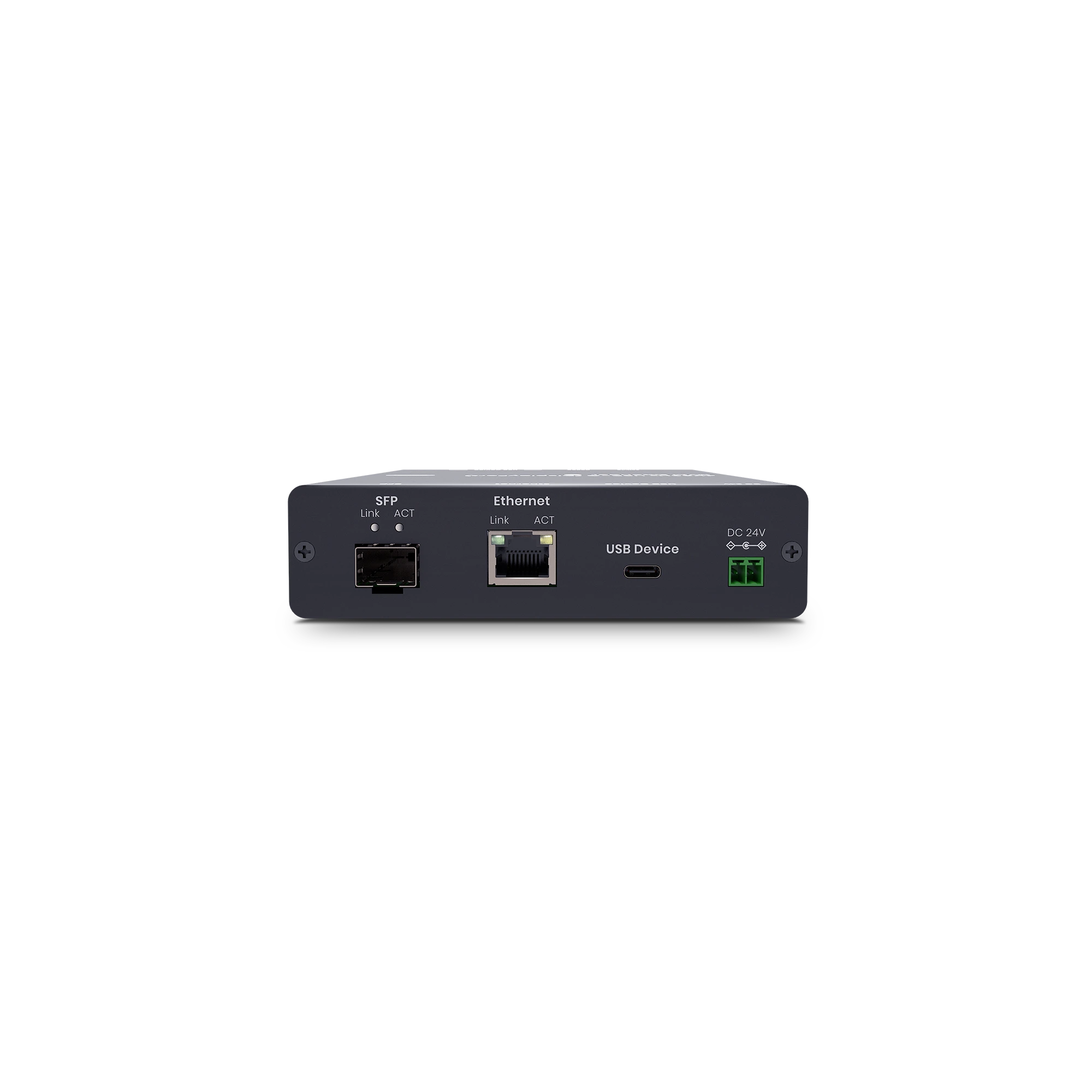

The SC&T UKM01P-4K6G is a professional USB-C KVM extender supporting both CAT5e/6 (160m) and Fiber (20km) transmission. It delivers flawless 4K@60Hz video and integrates USB PD 3.0, providing up to 100W to charge laptops directly. Featuring USB/AV extension over cost-effective cabling, it ensures seamless, real-time remote control for industrial and conferencing systems.

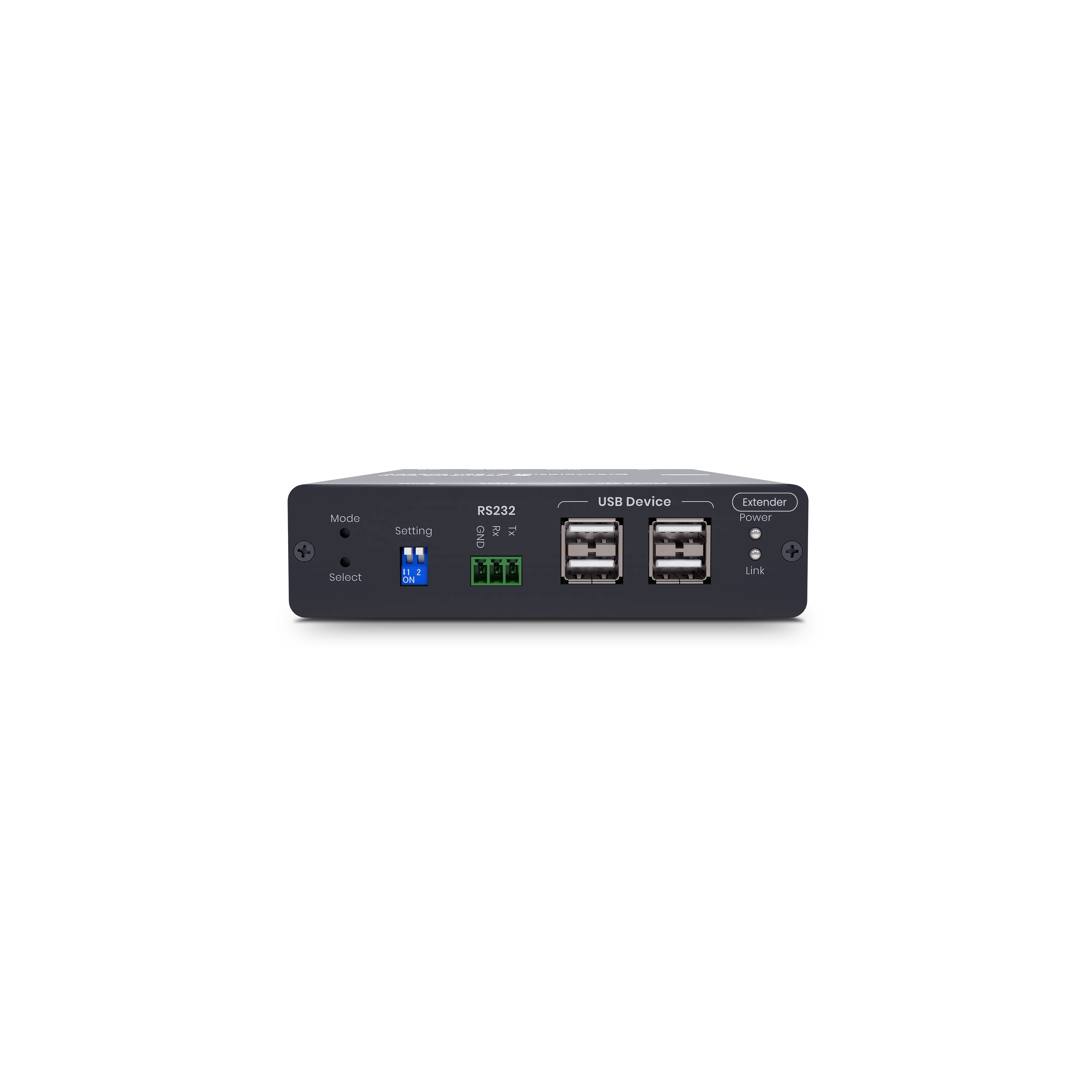

Supports standard USB-C KVM input for workstations, laptops, and tablets. Both Tx and Rx USB-C ports comply with DP Alt Mode and USB 2.0 standards, delivering flawless 4K@60Hz video with full HDR and Dolby Vision pass-through for zero-latency data transmission.

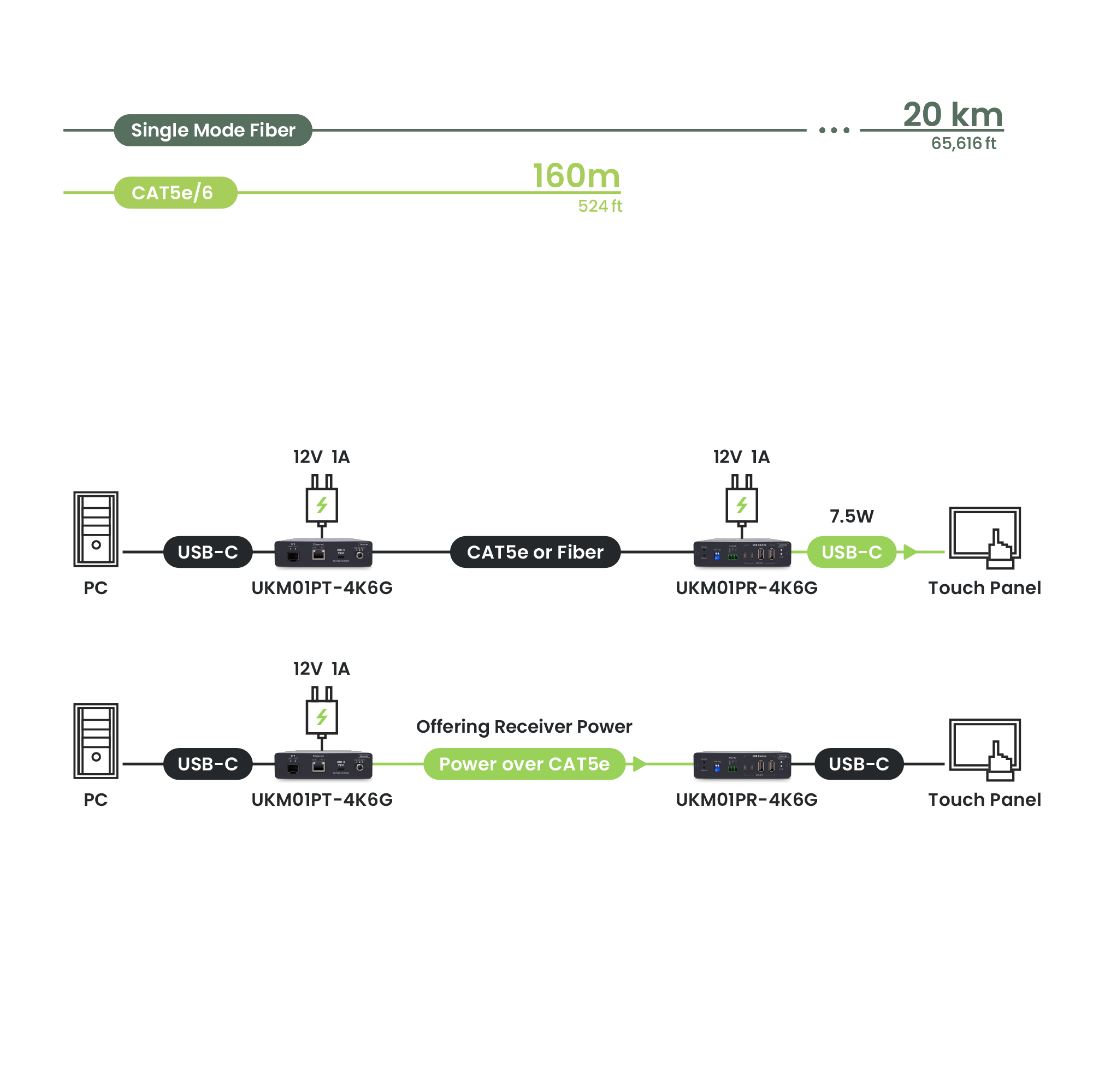

Offering flexible deployment options based on infrastructure requirements:

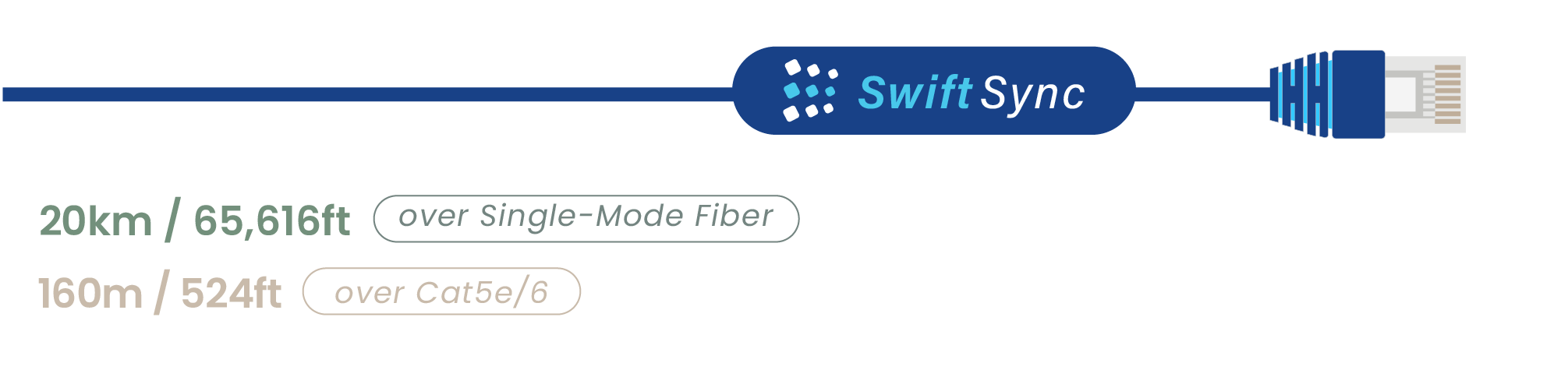

SwiftSync technology features a near-zero latency design (<1 frame). It maintains stable USB read/write rates and real-time keyboard and mouse responsiveness over 160m CAT5e/6.

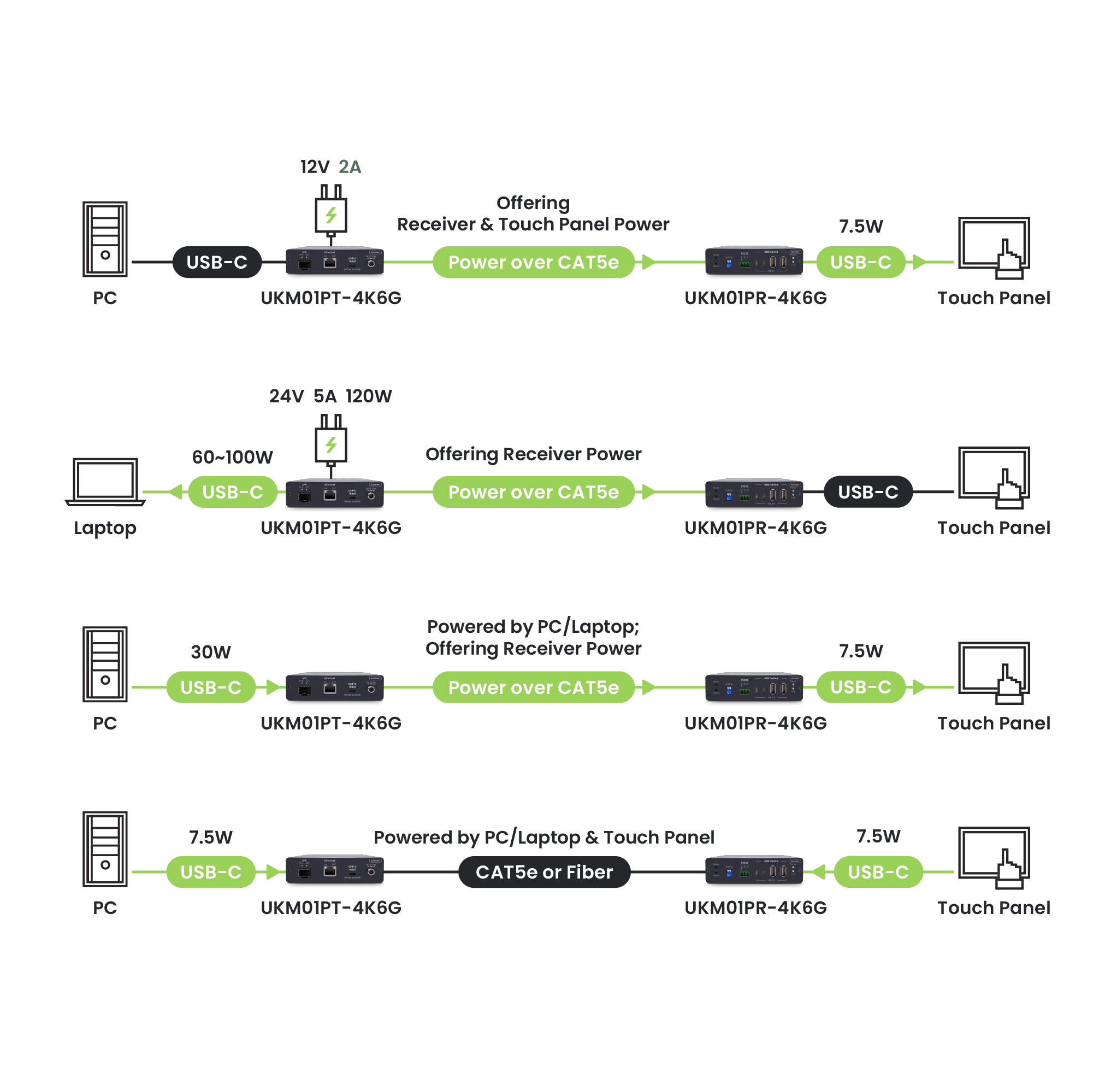

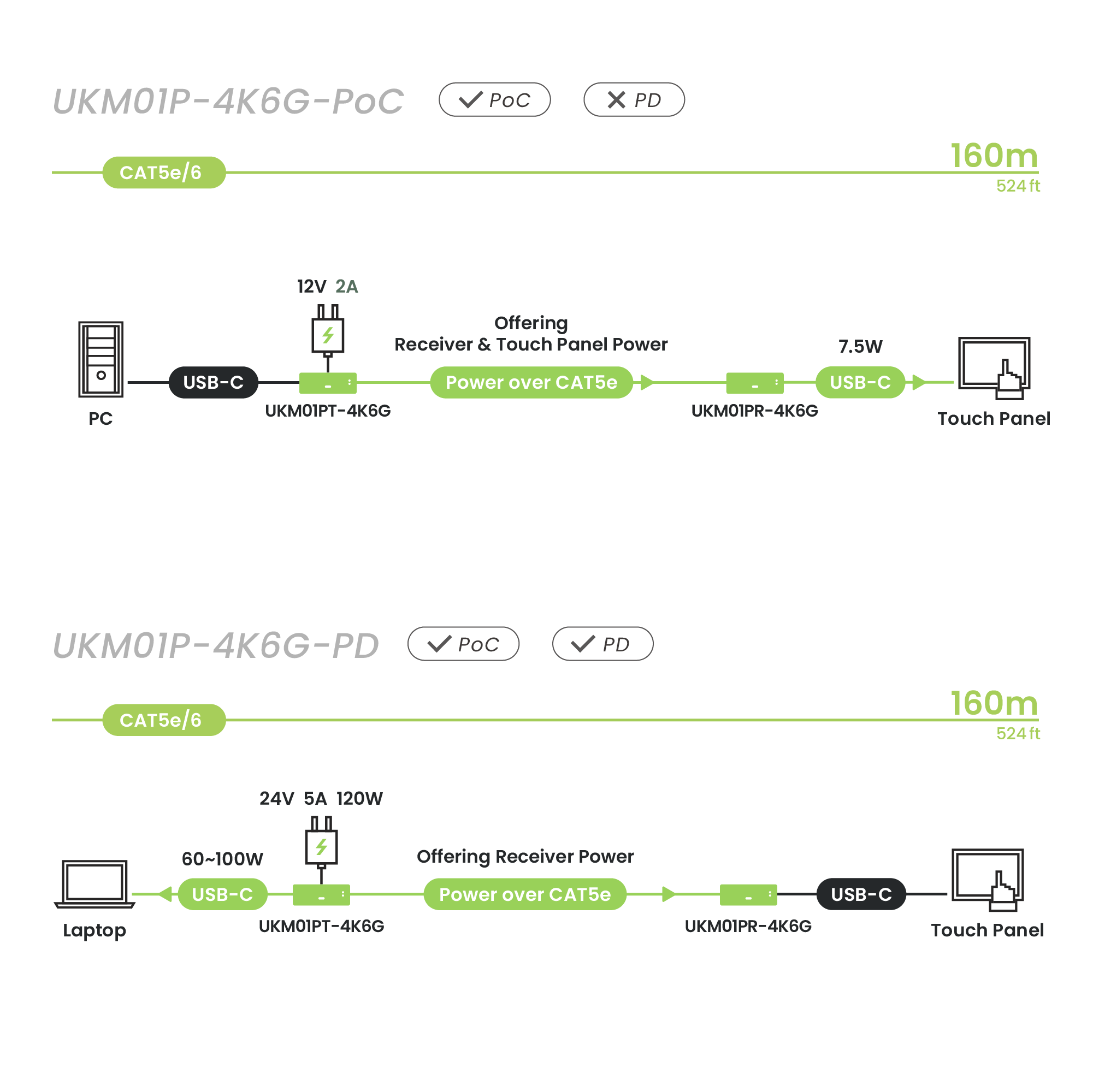

Features a Power over Cable (PoC) design to power both units from either side. Connecting a 24V/5A adapter to the Transmitter (Tx) simultaneously delivers up to 100W USB PD 3.0 power to connected PCs, touch panels, or mobile workstations.

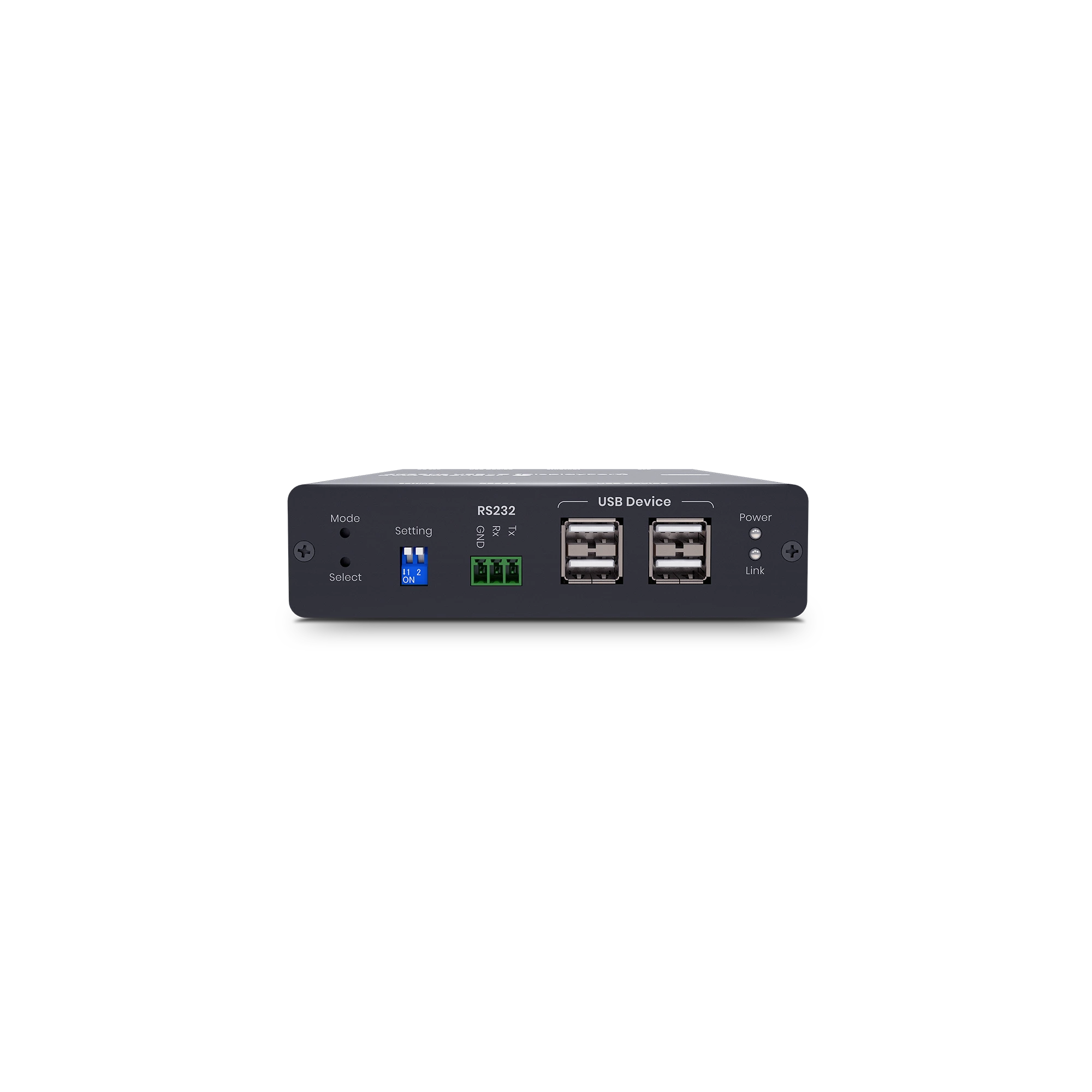

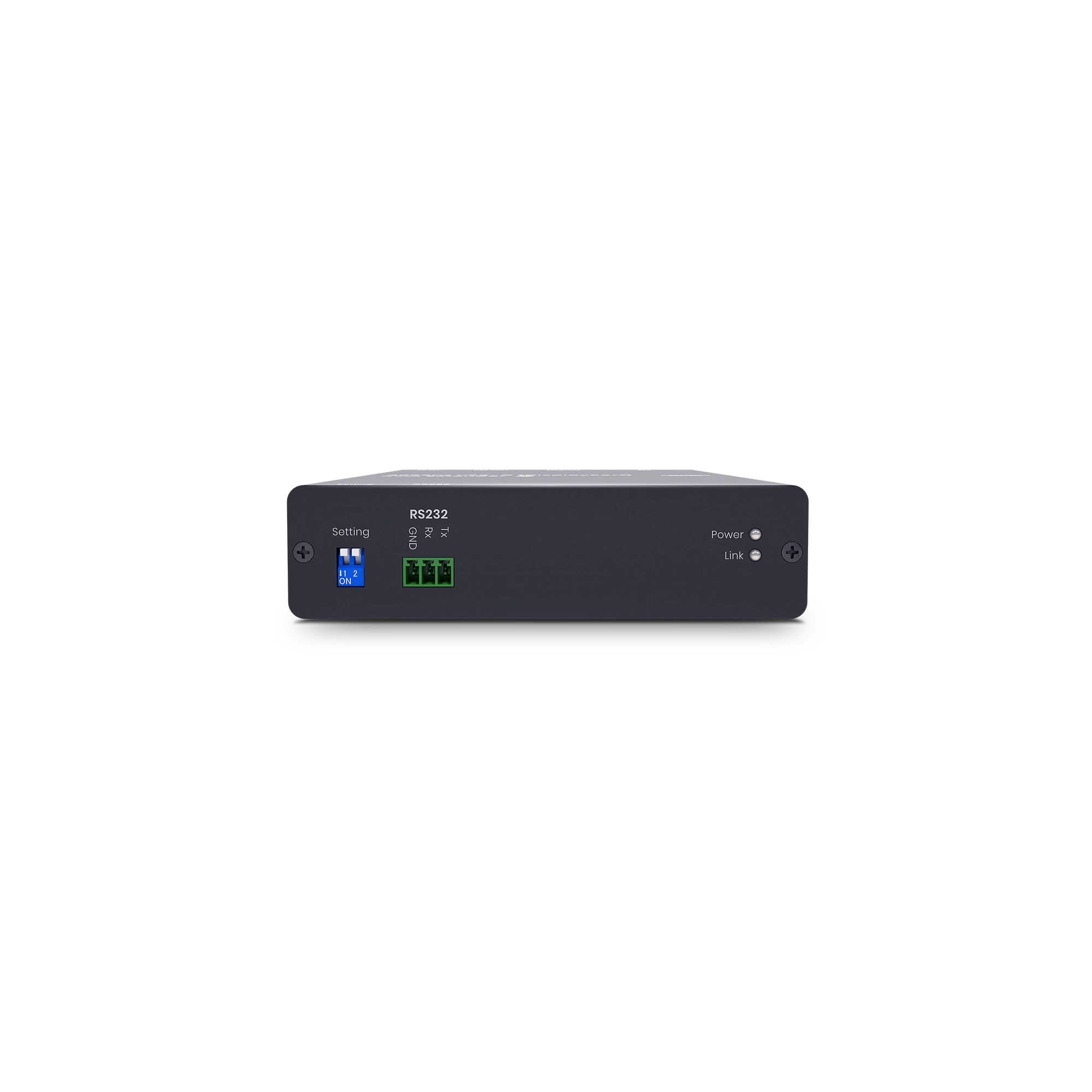

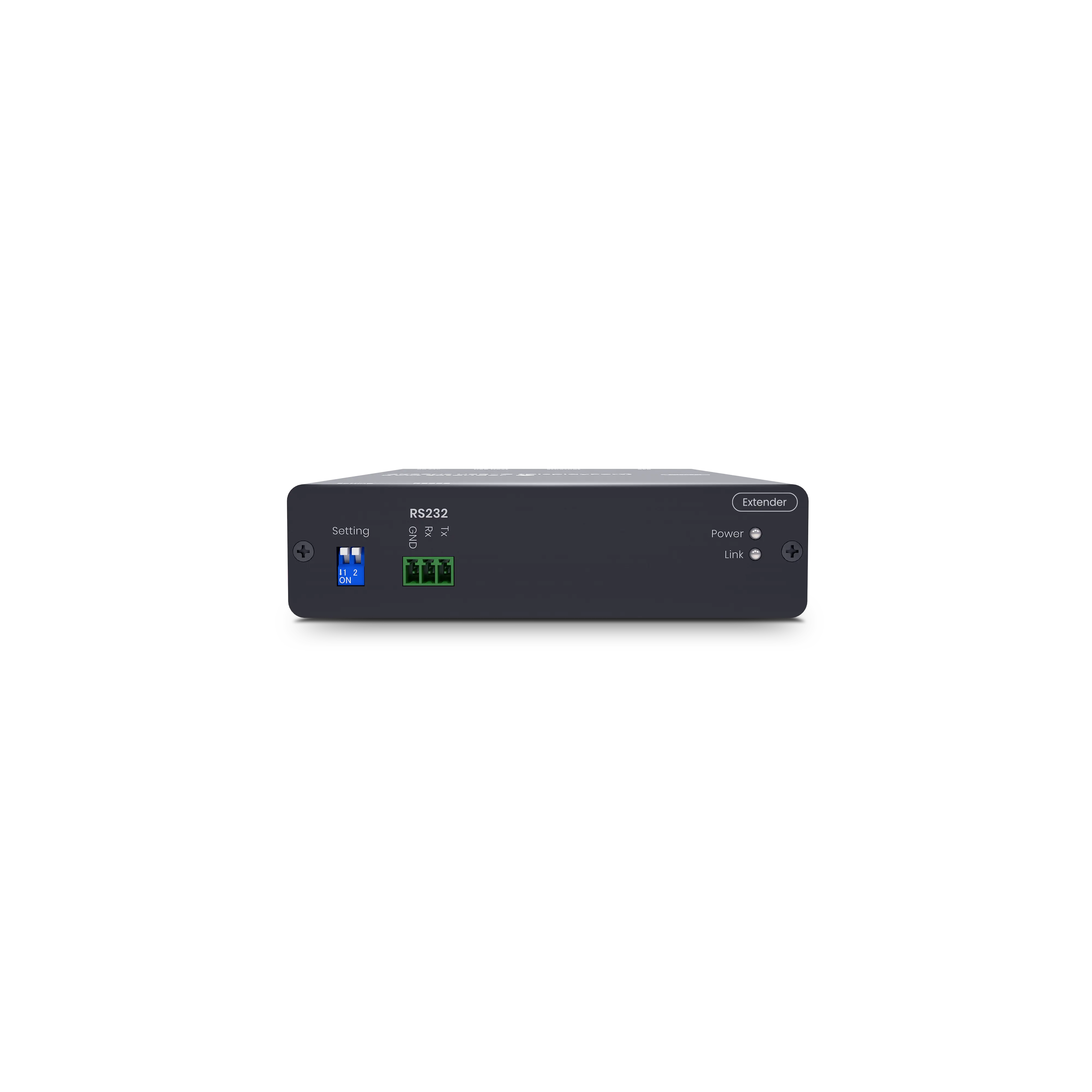

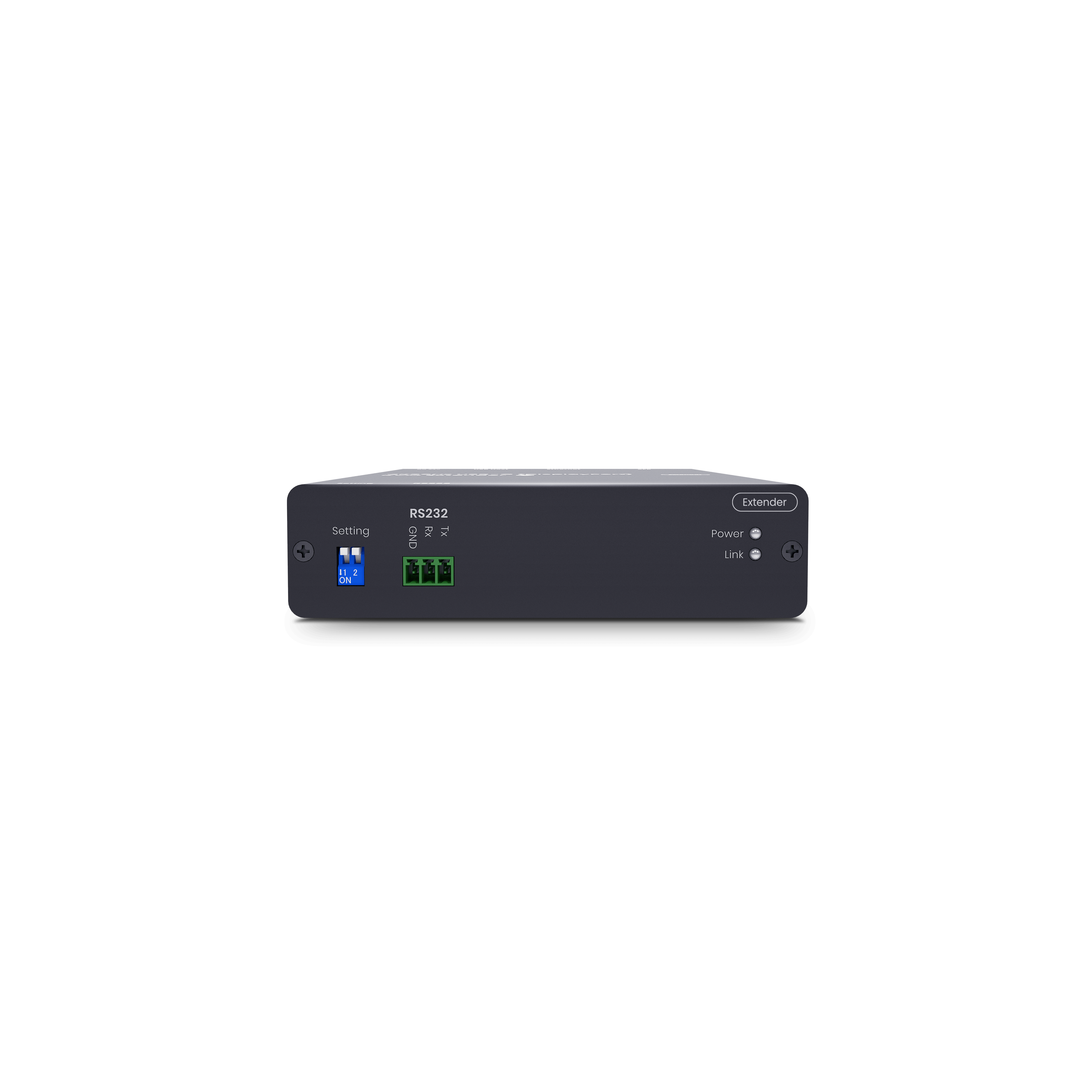

Supports full-duplex RS232 extension (up to 115200bps) for remote control of industrial machinery, projectors, or matrix switchers across different zones.
Compatible with standard HDMI transmitters and receivers for flexible system upgrades, and integrates seamlessly with the SC&T HKM01-4K6G series:

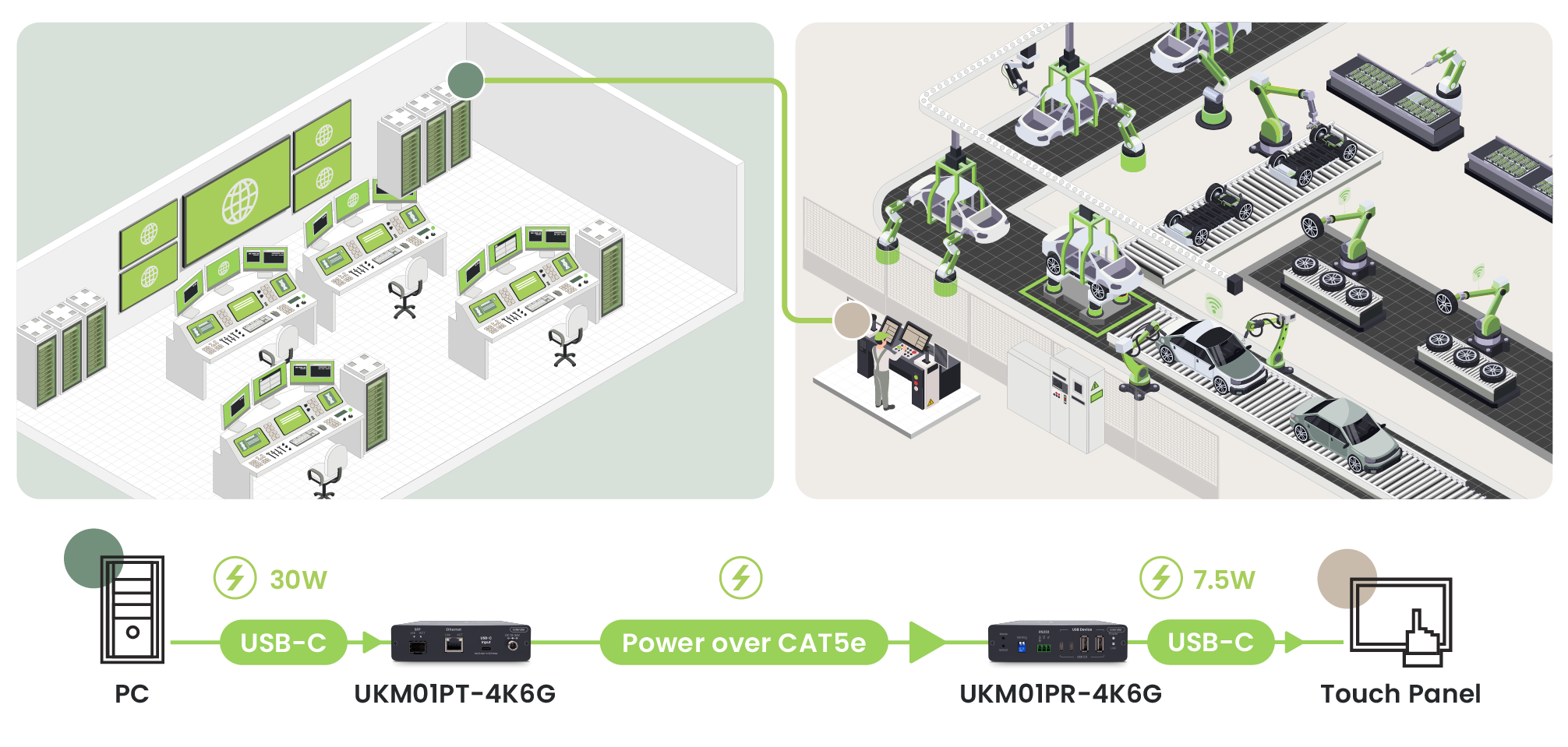

Centralizes servers in remote rooms for workstation isolation and secure machinery control. Operators manage industrial equipment and automation systems from the control room with ultra-low latency AV and KVM responsiveness.

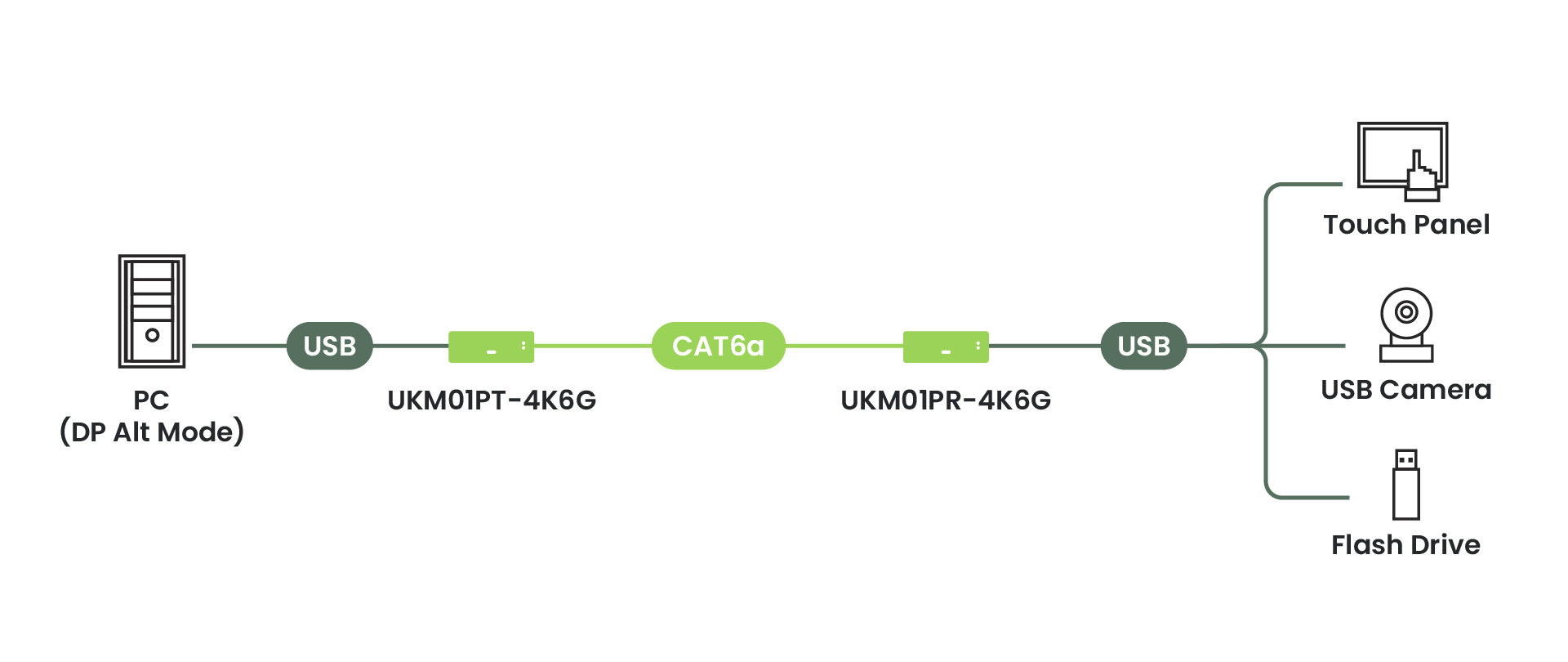

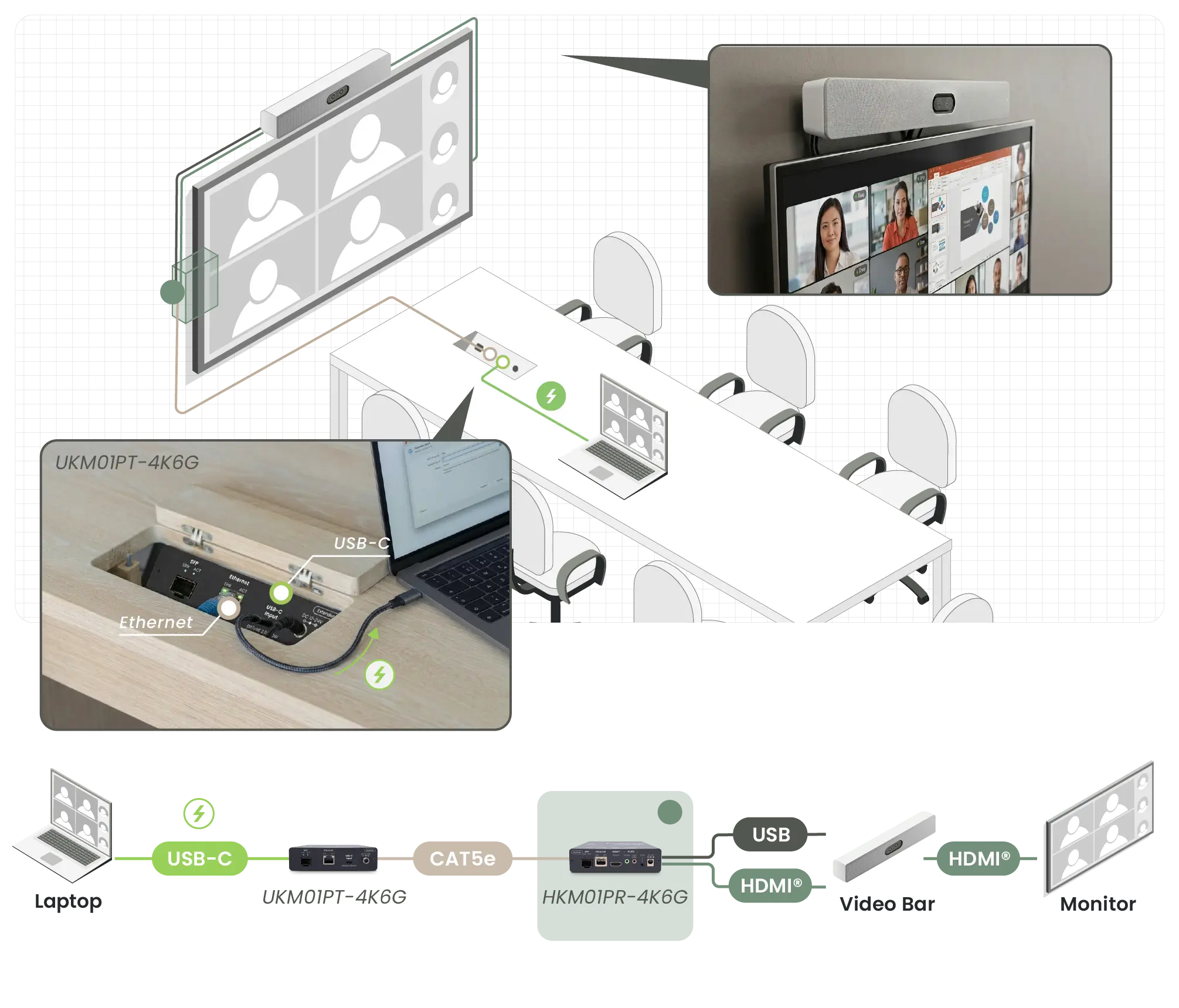

Delivers single-cable integration for interactive displays and laptops. Presenters connect via a single USB-C port to transmit 4K video, gain KVM control over conference cameras and audio peripherals, and receive high-power reverse charging simultaneously.
Connect a Video Bar (camera & audio) and a laptop over a single network cable, synchronizing HDMI and USB for smart room BYOD integration.
Max. Video Resolution: 4K60Hz

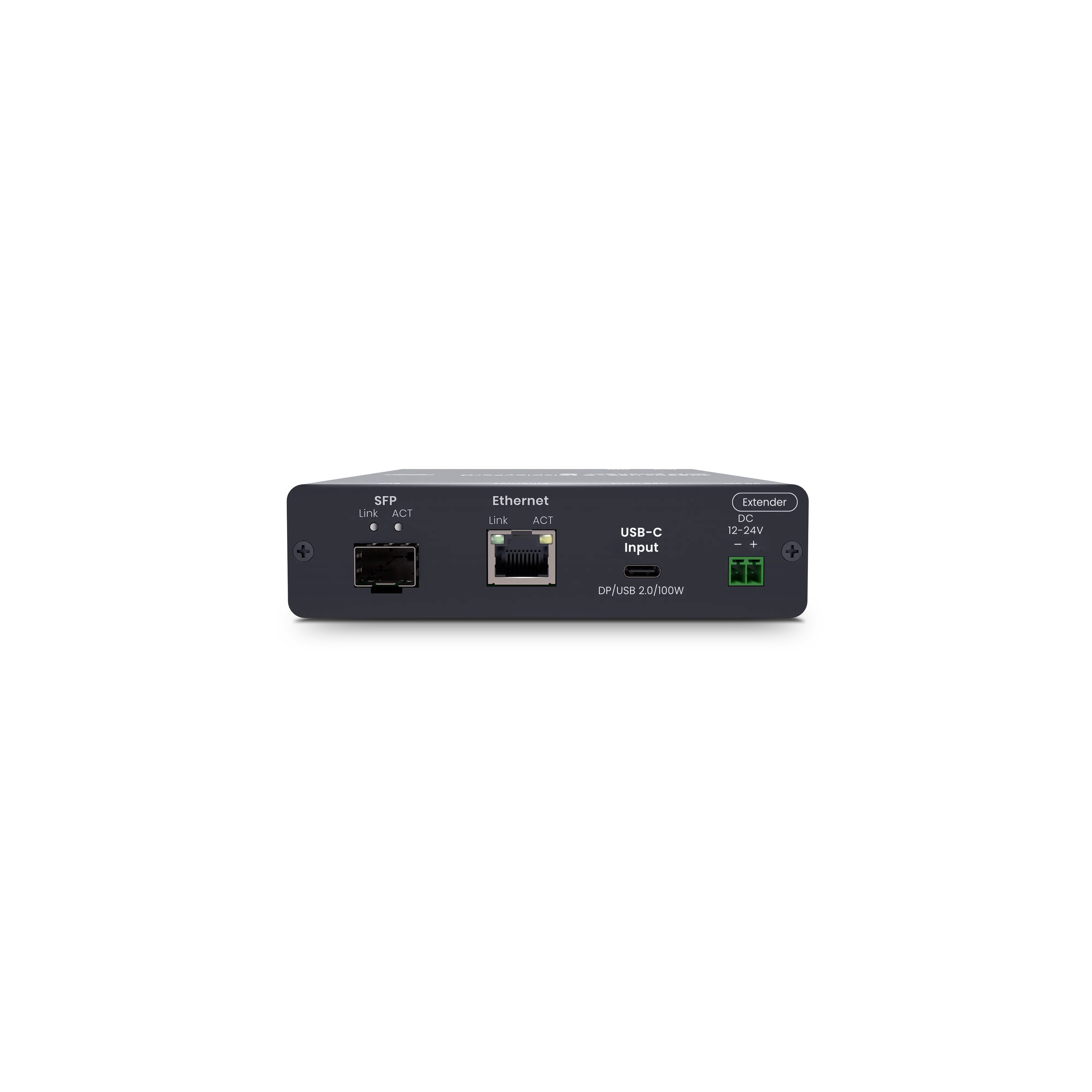

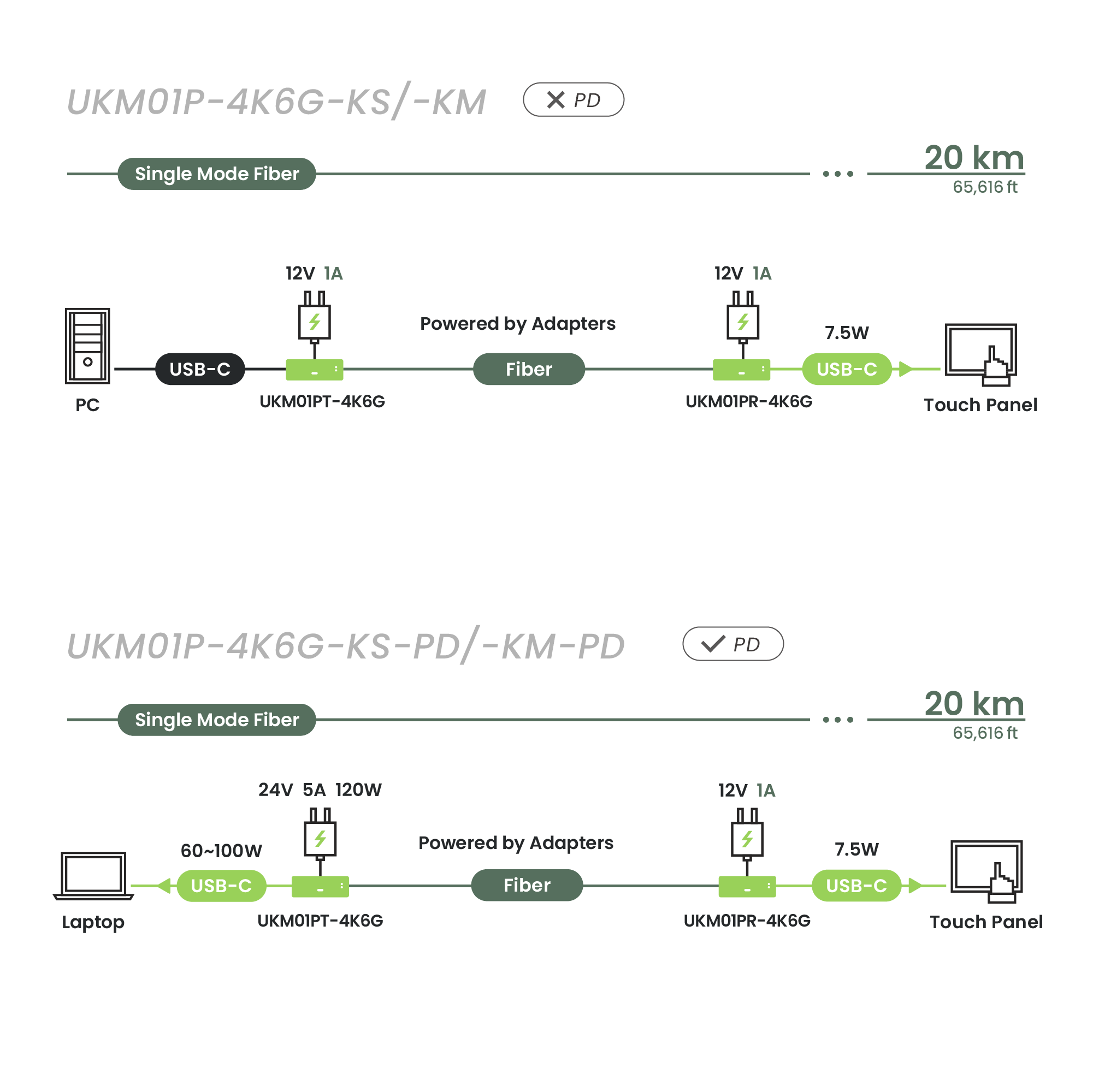

Max. Transmission Distance: 160m over CAT5e/6, 20km over SFP Fiber Optic.
Video Input: 1 x USB Type-C (DP ALT)

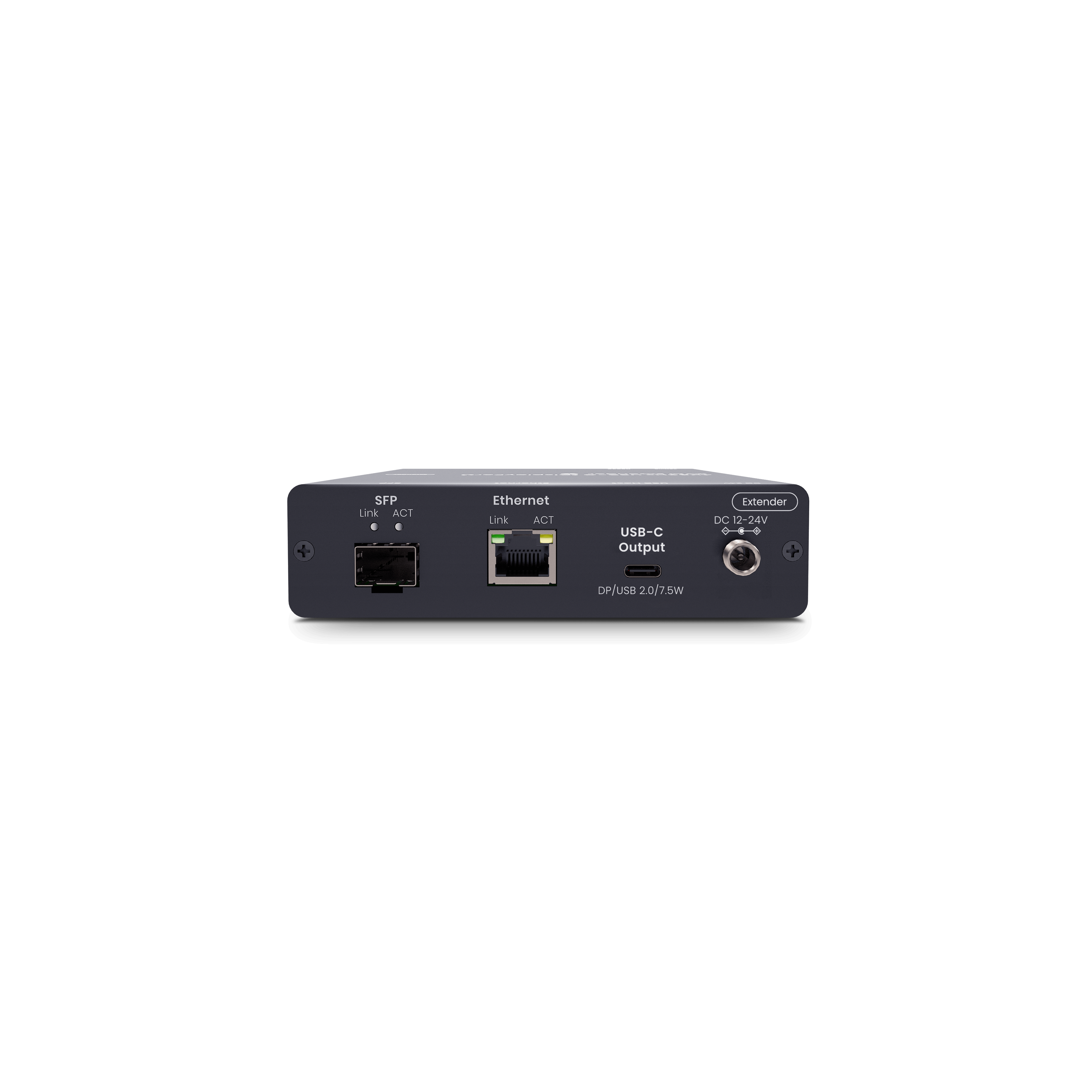

Video Output: 1 x USB Type-C (DP ALT)
Other Function: PD 3.0 (100W)
SwiftSync is a high-efficiency HDMI® transmission technology that offers a cost-effective alternative to uncompressed HDBaseT. With advanced 1G compression, it supports 4K60Hz and keeps latency under 3 frames (0.03 seconds) —near real-time with no visible delay. Watch our test video to see latency and image quality in action.
Release Date
Ver.
Release Note
File Name

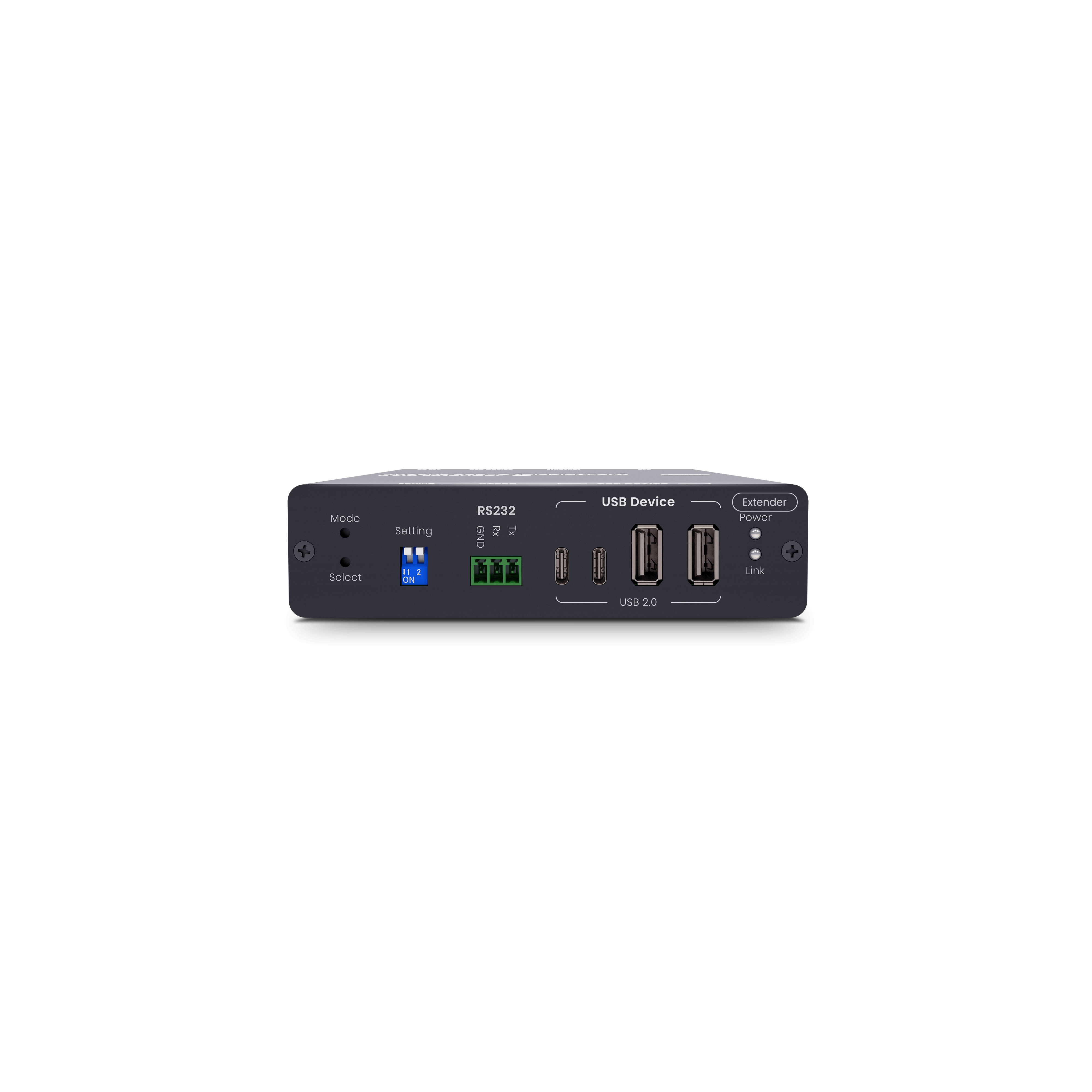

It complies with standard USB 2.0. While compatible with most keyboards, mice, flash drives, and conference cameras, long-range performance varies depending on cabling, environment, power demands, or proprietary protocols.
The extender features dual transmission interfaces:
The system locks the transmission path at boot-up. To switch modes, power down the device, reconnect the cables, and reboot.
Yes, via cross-model deployment. Pair the transmitter (UKM01PT) directly with an HDMI KVM receiver (HKM01R-4K6G) to break out standard HDMI, USB, audio and IR without external adapters.
Check the following two parameters:
1. Cabling:
2. EDID: Verify that the extender's EDID configuration matches the monitor's native resolution.
