1G AV/KVM over IP
HKM02BP-4K6G

4K60Hz HDMI® USB/Audio/RS232/IR KVM over PoE Extender

  • Resolution up to 4K60Hz 4:4:4
  • Signal extension up to 100m over CAT5e (or greater), 60km over fiber optic cable
  • Workable with Ethernet switches for HDMI® extension, distribution, switching and matrix
  • Built-in loop out, an extra local HDMI® display at transmitter side
  • PoE powered
Inquiry

As a manufacturer, we value the profit of our clients and do not have any online store. You can get the unpublished price from us through the inquiry button.

SEE other models
Inquiry

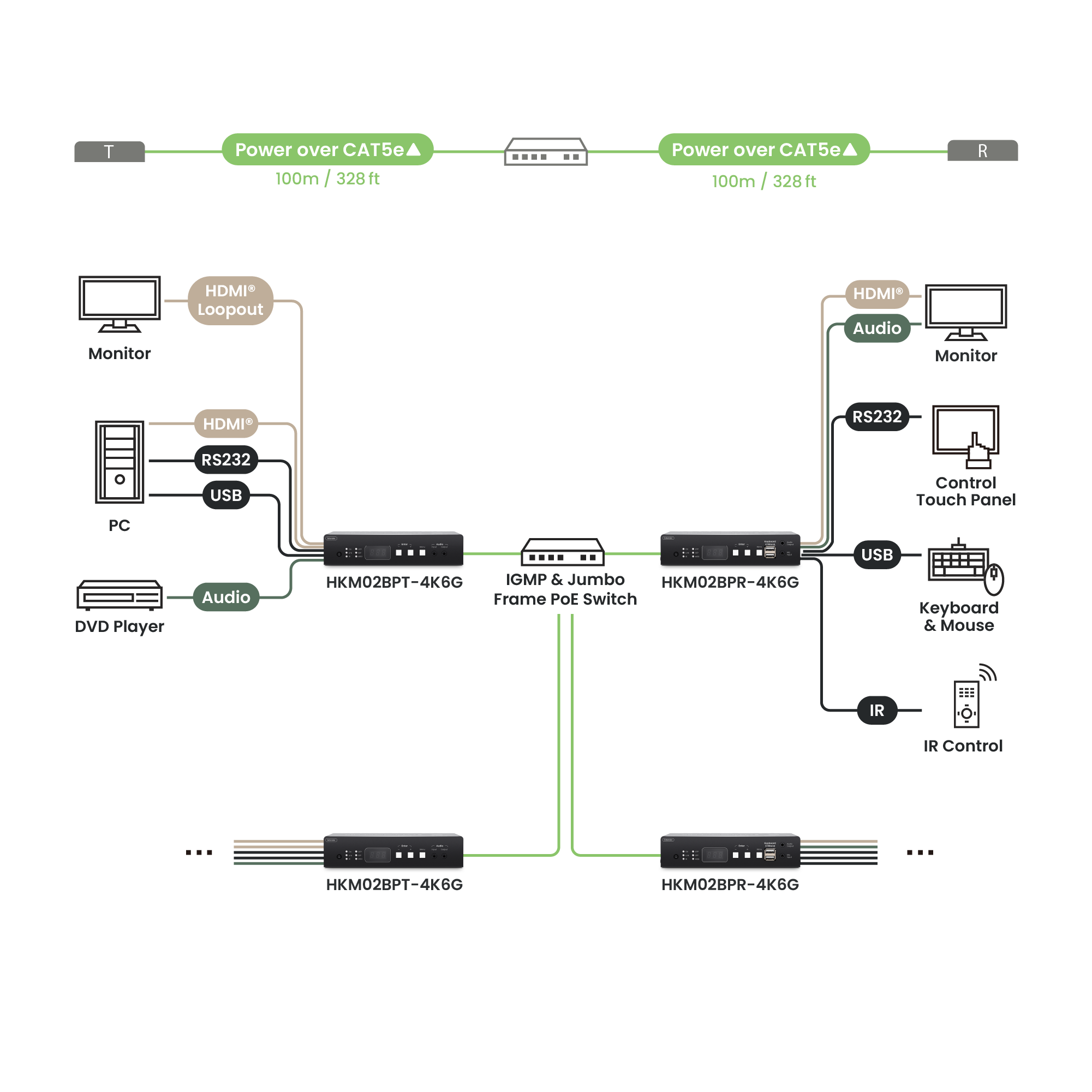

HKM02BP-4K6G uses AV over IP/PoE technology to route up to 1000 4K60Hz HDMI® sources to up to 60000 display over IGMP and jumbo frame protocol gigabit PoE switches, which can achieve HDMI® signal extending, distributing, switching and routing. Additionally, the boundless switching function allows you to use one mouse to operate multiple PCs by moving the mouse cursor across the monitor’s borders. HKM02BP-4K6G is a multifunctional system that integrates multiple media. You can perfectly apply it to large-scale security rooms, classrooms, trading rooms, and many more.

Model

HKM02BP-4K

HKM02B-4K

HKM02B

VDKM02B

Video Format

HDMI

HDMI

HDMI

VGA/DVI

Resolution

4K@30Hz

4K@30Hz

1080p@60Hz

1080p@60Hz

Audio Embed & Extract

V

V

V

V

IR

V

V

V

V

RS232

V

V

V

V

PoE

V

Fiber Module

V

V

  • Resolution up to 4K60Hz 4:4:4
  • Signal extension up to 100m over CAT5e (or greater), 60km over fiber optic cable
  • Workable with Ethernet switches for HDMI® extension, distribution, switching and matrix
  • Built-in loop out, an extra local HDMI® display at transmitter side
  • Built-in 4 USB ports for remote control at receiver side
  • PoE powered
  • Supports video sub-stream

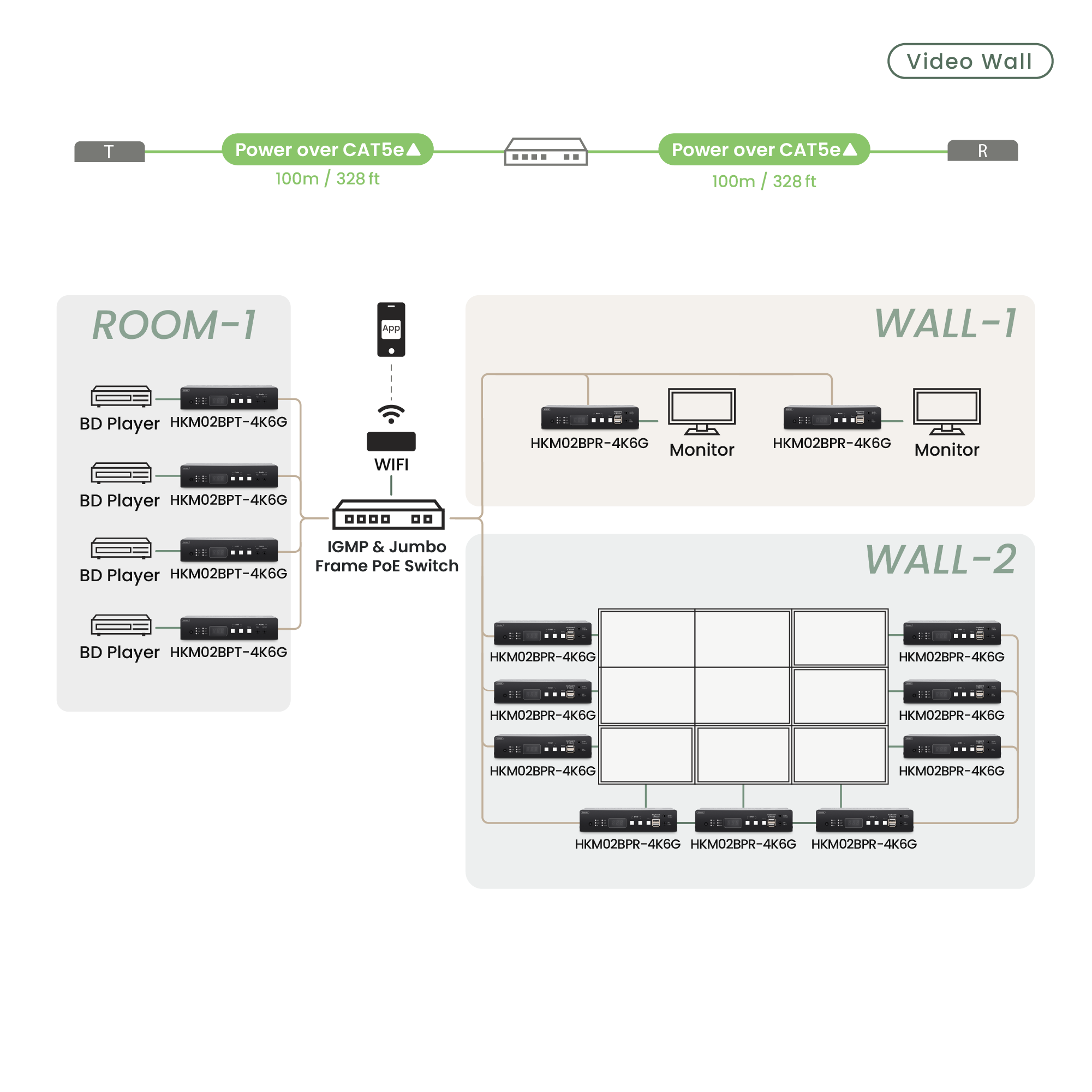

  • Supports videowall
  • Supports video scaler, 4K to 1080p/1080p to 4K
  • Supports HDMI® audio embedding and extraction
  • Supports image rotation
  • Supports RS232 signal distribution
  • Workable with IP04RIP for longer distance
  • Supports PoE (Power over Ethernet), up to 15W for power input.
  • Support mouse roaming, one keyboard/mouse to control multiple PC
  • Managed via Windows, Android/iOS app, WebGUI, IR remote, panel buttons, RS232 console and telnet API

Firmware/Software

Release Date

Ver.

Release Note

File Name

No items found.
Tutorial Video

Show More
icon

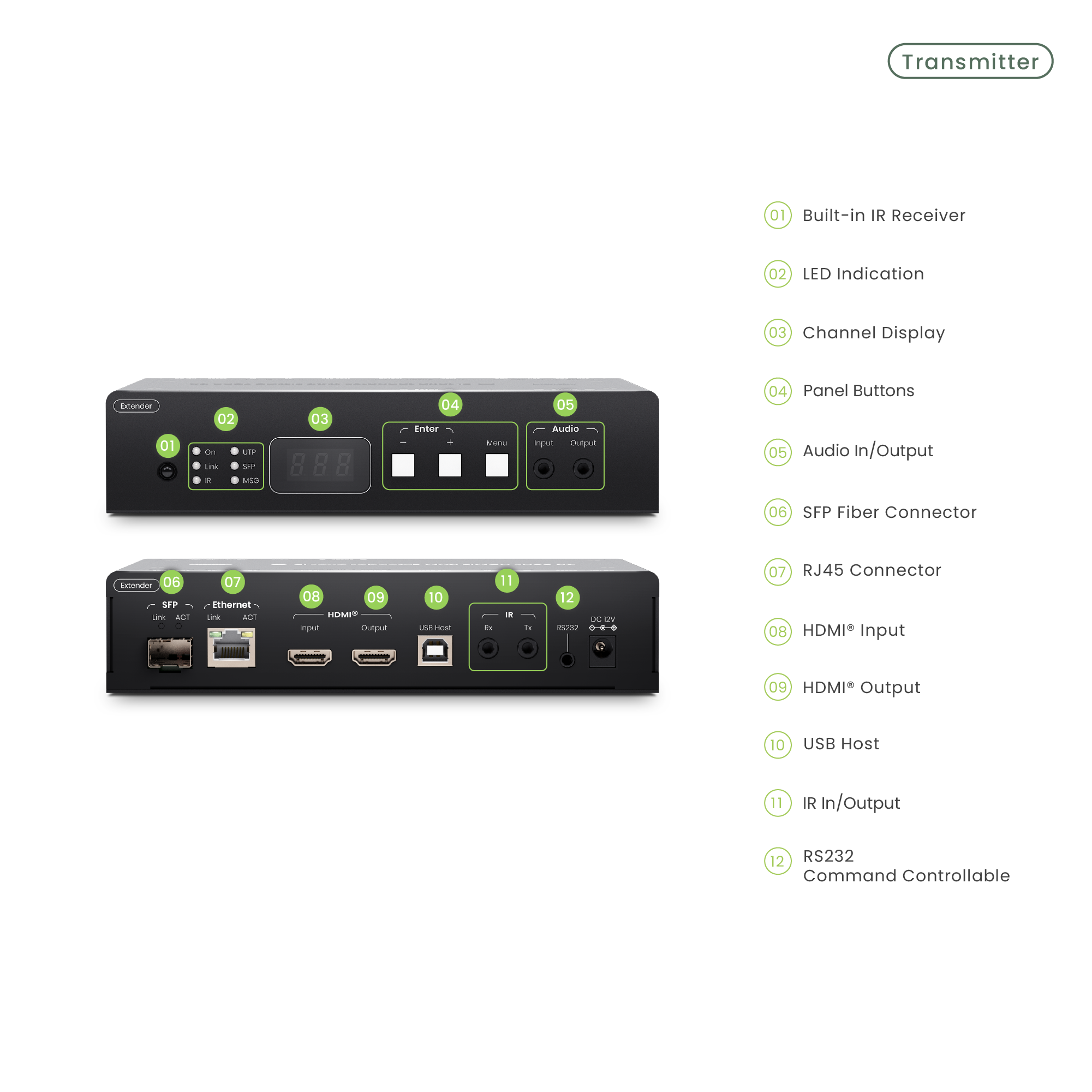

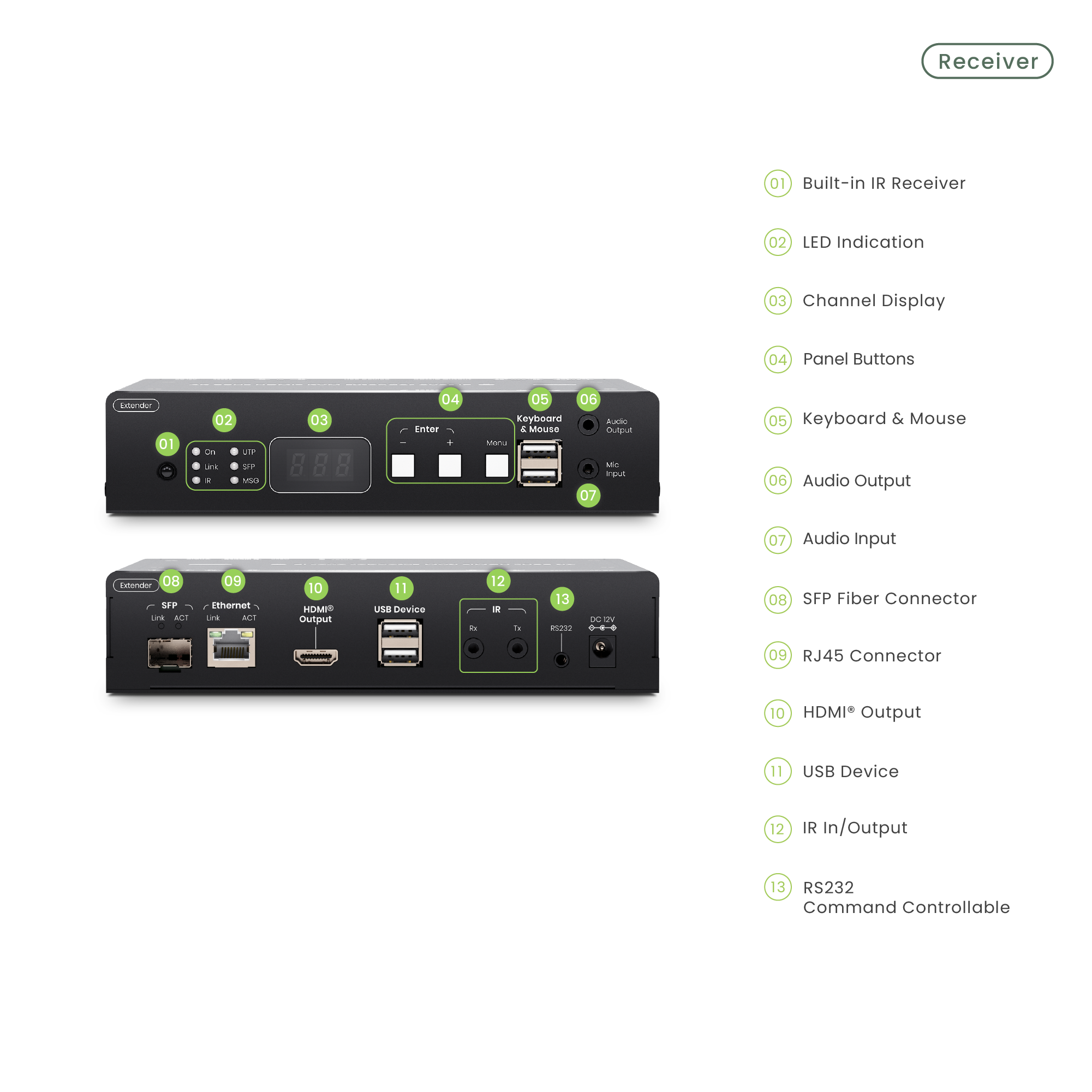

Specification

ITEM NO.

HKM02BPT-4K6G

HKM02BPR-4K6G

Compliance

Standard

HDMI® 2.0
HDCP 2.2

Max. Video Resolution

4K60Hz

Max. Transmission Distance

100m over CAT5e

Dynamic Range Standard

SDR, HDR, HDR10, HDR10+, Dolby Vision

Audio Format

PCM 2CH, 5.1CH, 7.1CH
Dolby True HD, Dolby Digital (AC-3), Dolby Digital Plus (E-AC-3), Dolby Atmos (AC4)
DTS, DTS-HD Master Audio, DTS: X

Analog Audio

Impedance: 500Ω
Signal-to-noise Ratio (SNR): 114dB (A-weighted)
Dynamic Range: 114dB
THD+N: -94dB

RS232 Baud Rate

115200 bps

IR Support

20-60 Khz, ±45°, 5M

Ports & Interfaces

Video Input

1 x HDMI Type-A

1 x RJ45

Video Output

1 x RJ45

1 x HDMI Type-A

Video Loop-out

1 x HDMI Type A

-
