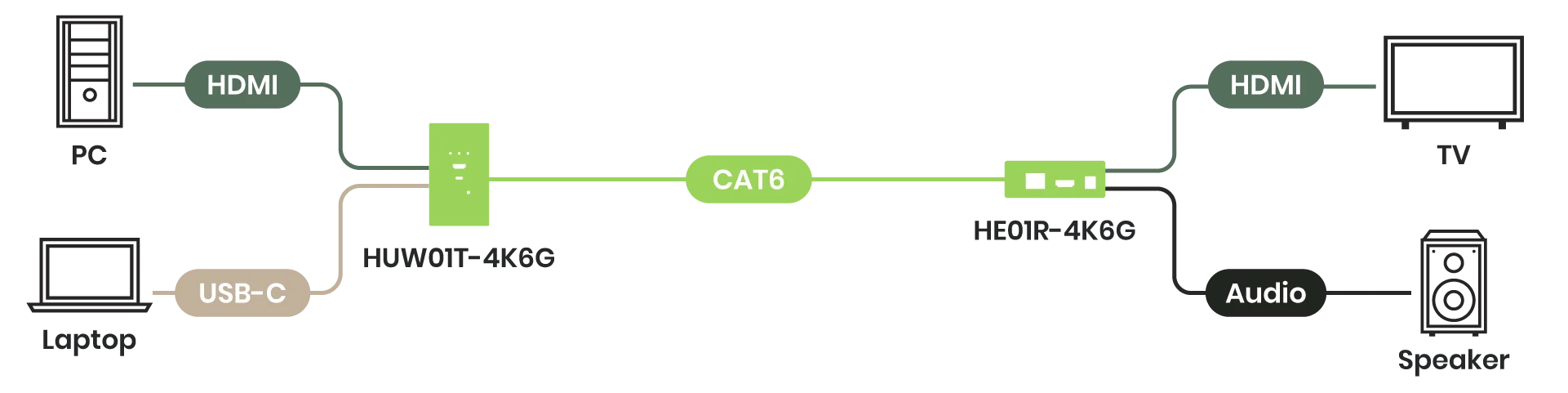

HUW01-4K6G is US-Standard HDMI® and USB-C wall plate extender that can use one single CAT6 cable to transmit audiovisual signals and power. It supports up to 4K resolution at 60Hz with a maximum transmission distance of 70m. The device offers flexibility, allowing users to choose between HDMI® or USB-C input ports for audiovisual signal transmission.
The SC&T 4K60Hz HDMI & USB-C Wall Plate Extender is designed for conference rooms, classrooms, and presentation spaces. It allows users to connect video sources directly from the wall and extend the signal to a remote display. This model supports 4K@60Hz video transmission and is compatible with USB-C DP Alt Mode. Using a single CAT6 cable, the wall plate extender transmits up to 230 feet (70 meters), providing a clean and efficient cabling solution. Its in-wall design integrates seamlessly into the environment, promoting a tidy and professional workspace.
This wall plate extender features both HDMI and USB-C (with DisplayPort Alt Mode) input ports, allowing users to connect different types of AV devices. It is compatible with modern laptops, media players, and mobile devices, providing increased flexibility and convenience in shared environments.
The front panel includes a physical button that allows users to switch easily between HDMI and USB-C input sources, without the need to constantly plug and unplug cables. An indicator light shows the currently active input, making operation simple and intuitive.
Whether using a laptop for presentations or a mobile device for media playback, users can switch sources with a single press, greatly improving flexibility and on-site efficiency in environments where multiple devices are used in rotation.
With support for 4K@60Hz (4:4:4) resolution, the USB-C/HDMI wall plate extender ensures high-definition video output with smooth motion and accurate color. It is ideal for professional AV applications such as business presentations, digital signage, and interactive displays.
Using a single CAT6 cable, this extender supports transmission distances up to 70 meters (230 feet). This makes it well-suited for mid-sized to large AV installations where cable routing efficiency and cost are important.
The extender uses PoC technology to supply power to the HDMI wall plate transmitter through the same CAT6 cable. Only the receiver needs to be connected to a power adapter. This greatly simplifies installation and keeps wall surfaces clean and unobstructed.
*Note: The USB-C input does not support Power Delivery and cannot charge connected devices.
This device supports audio extraction, allowing audio signals from HDMI or USB-C inputs to be output separately. The extracted audio is delivered through a 5-pin Phoenix (Euroblock) terminal, making it easy to integrate with commercial amplifiers or professional sound systems. This function is particularly useful for AV integrators deploying systems in conference rooms, classrooms, and other public or commercial environments.
The wall plate follows the US 1-Gang standard, making it compatible with common wall boxes in the United States, Canada, and many other regions. This design ensures broad installation compatibility across international markets.
Release Date
Ver.
Release Note
File Name
The extender supports up to 4K@60Hz (4:4:4) and complies with HDMI 2.0 and HDCP 2.2 standards. For best performance, use high-quality CAT6 or CAT5e cables.
Yes. CAT5e supports up to 60 meters (196 feet), but CAT6 is recommended for distances up to 70 meters (230 feet).
It supports Power over Cable (PoC), which powers the transmitter through the receiver’s power adapter, simplifying installation.
No. The inputs are selectable; only one source can be active at a time. The device supports manual or auto input detection.
Yes. The extender supports HDR, Dolby Vision, Dolby TrueHD, and DTS-HD Master Audio, delivering an enhanced AV experience.
No. The USB-C input only supports video and audio. USB data for KVM use is not supported.
