The SC&T HUE01-4K6G is a professional-grade Pro AV extender designed for reliable, long-distance signal transmission over standard IT infrastructure. Using a single high-quality CAT6 cable, this system extends uncompressed 4K60Hz video up to 70 meters (230 feet) with near-zero latency.

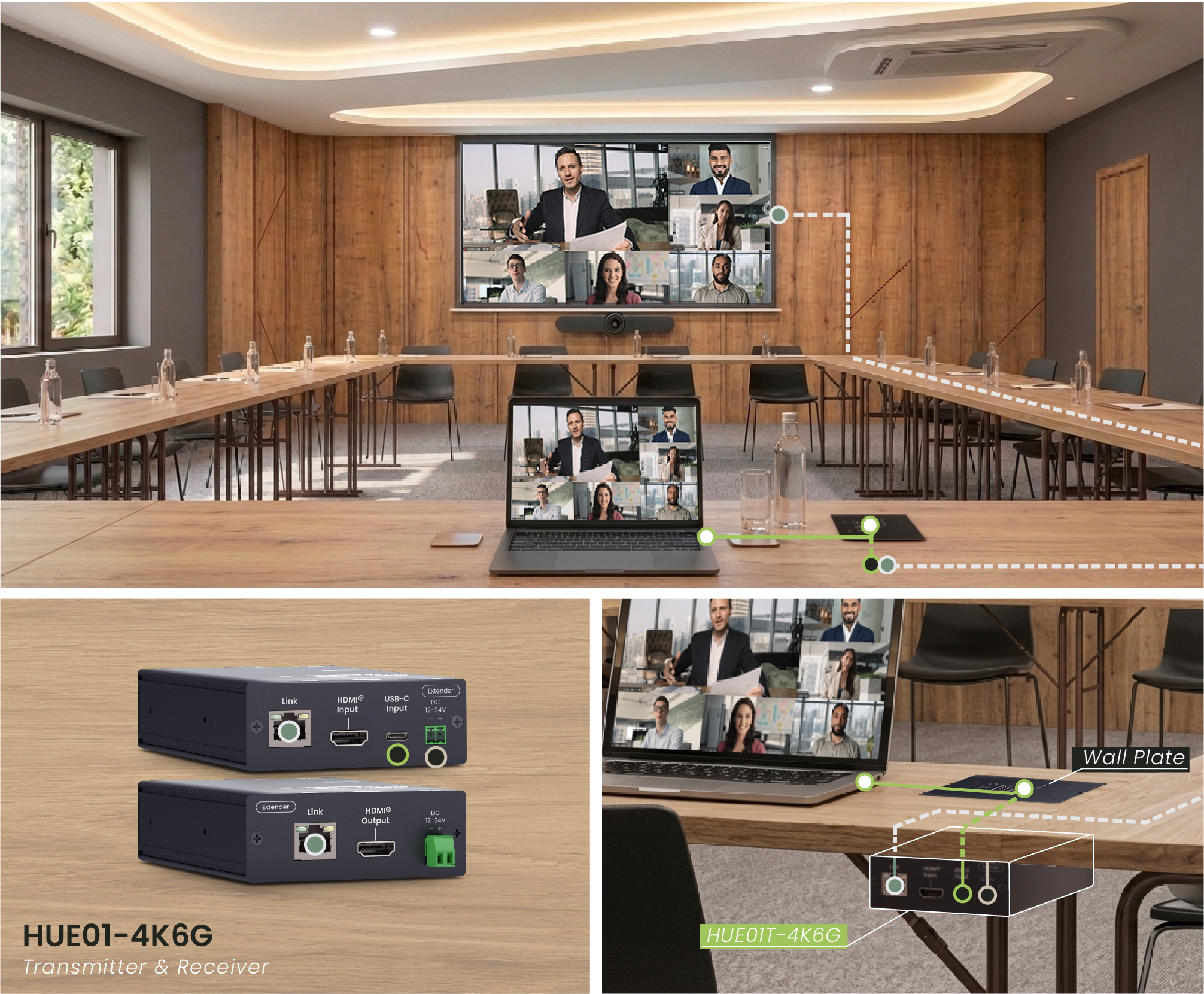

The transmitter features dual HDMI and USB-C inputs with intelligent auto-switching. To simplify clean-desk huddle rooms and corporate boardrooms, the USB-C port supports up to 100W USB Power Delivery (PD 3.0) to charge presentation laptops directly. With bidirectional Power over Cable (PoC) and serial RS-232 control extension, the HUE01-4K6G serves as a dependable core component for modern commercial AV system integration.

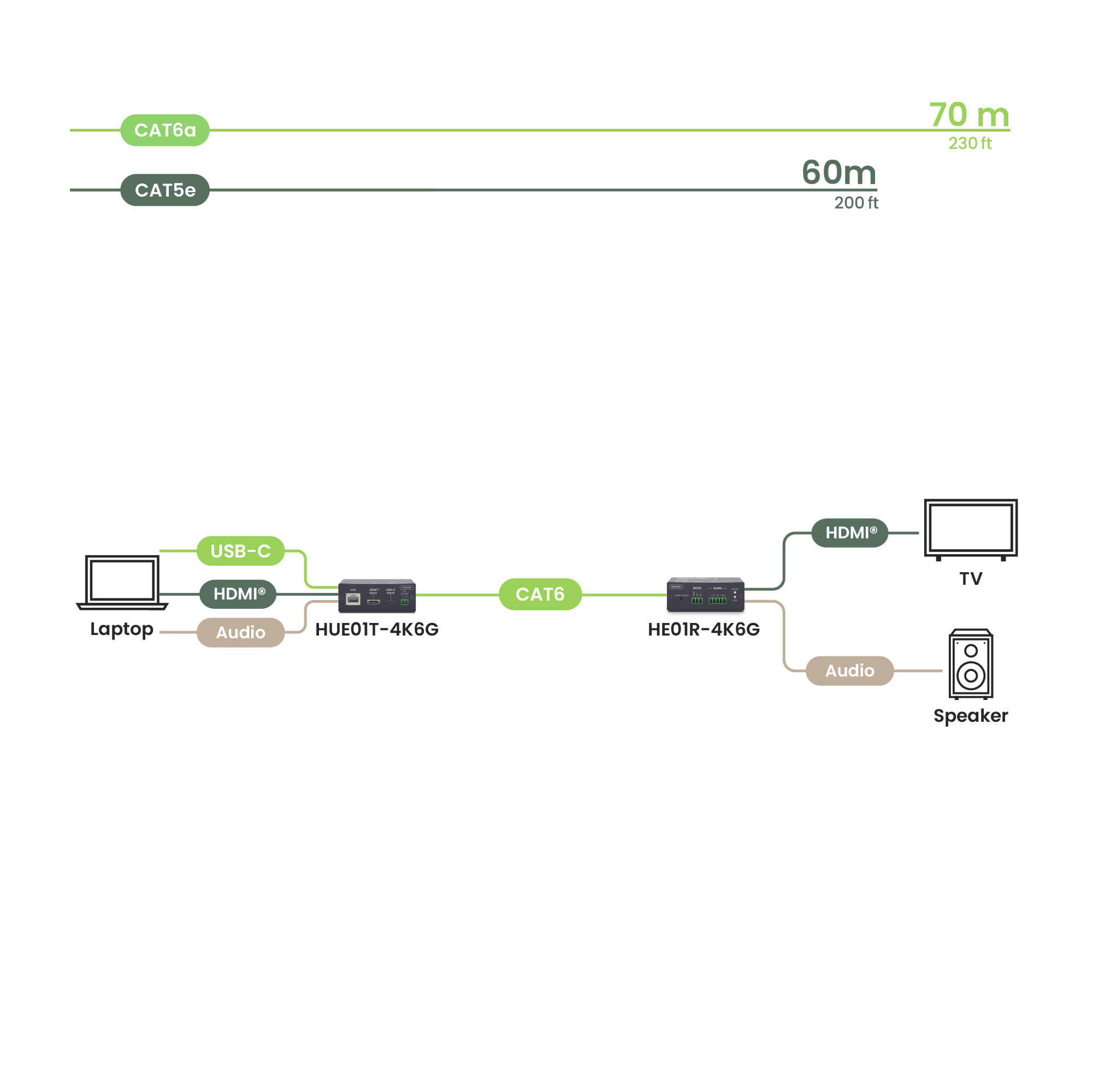

Deliver flawless 4K60Hz (4:4:4) video data rates over a single cable run. Reach up to 70m (230ft) using standard CAT6 cable, or up to 60m (196ft) with CAT5e. The hardware ensures high-end, professional-grade transmission with near-zero latency (less than 1 frame) for critical real-time operations.

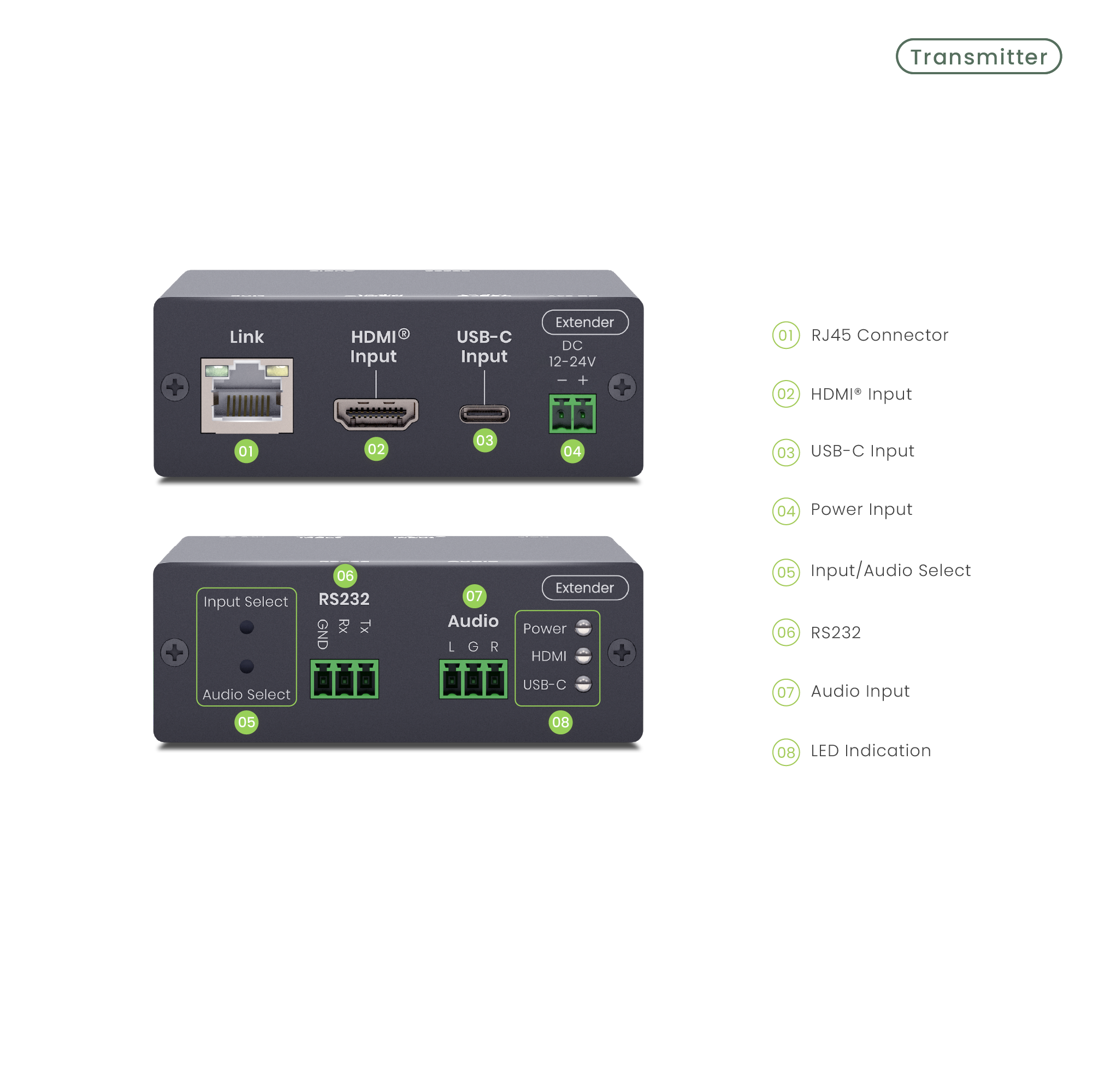

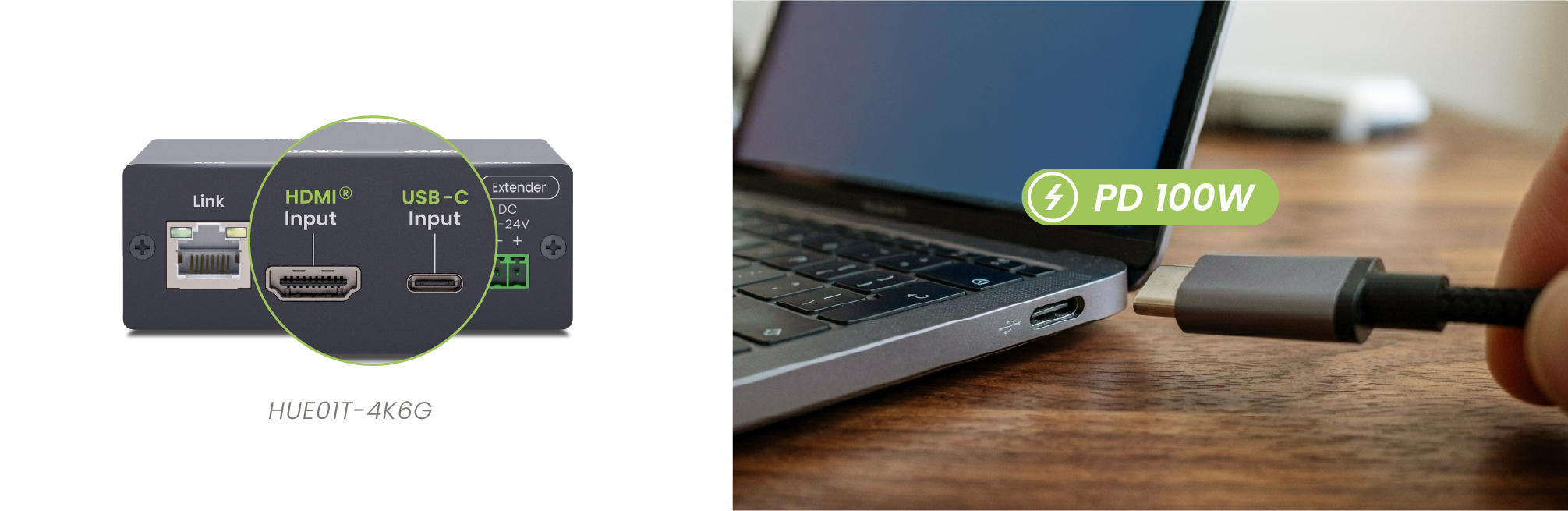

The transmitter integrates HDMI 2.0 and USB-C (DisplayPort Alternate Mode) interfaces, supporting both manual control and auto-search detection. When connecting via USB-C, the system delivers up to 100W PD fast charging, eliminating the need for bulky laptop power bricks on the conference table.

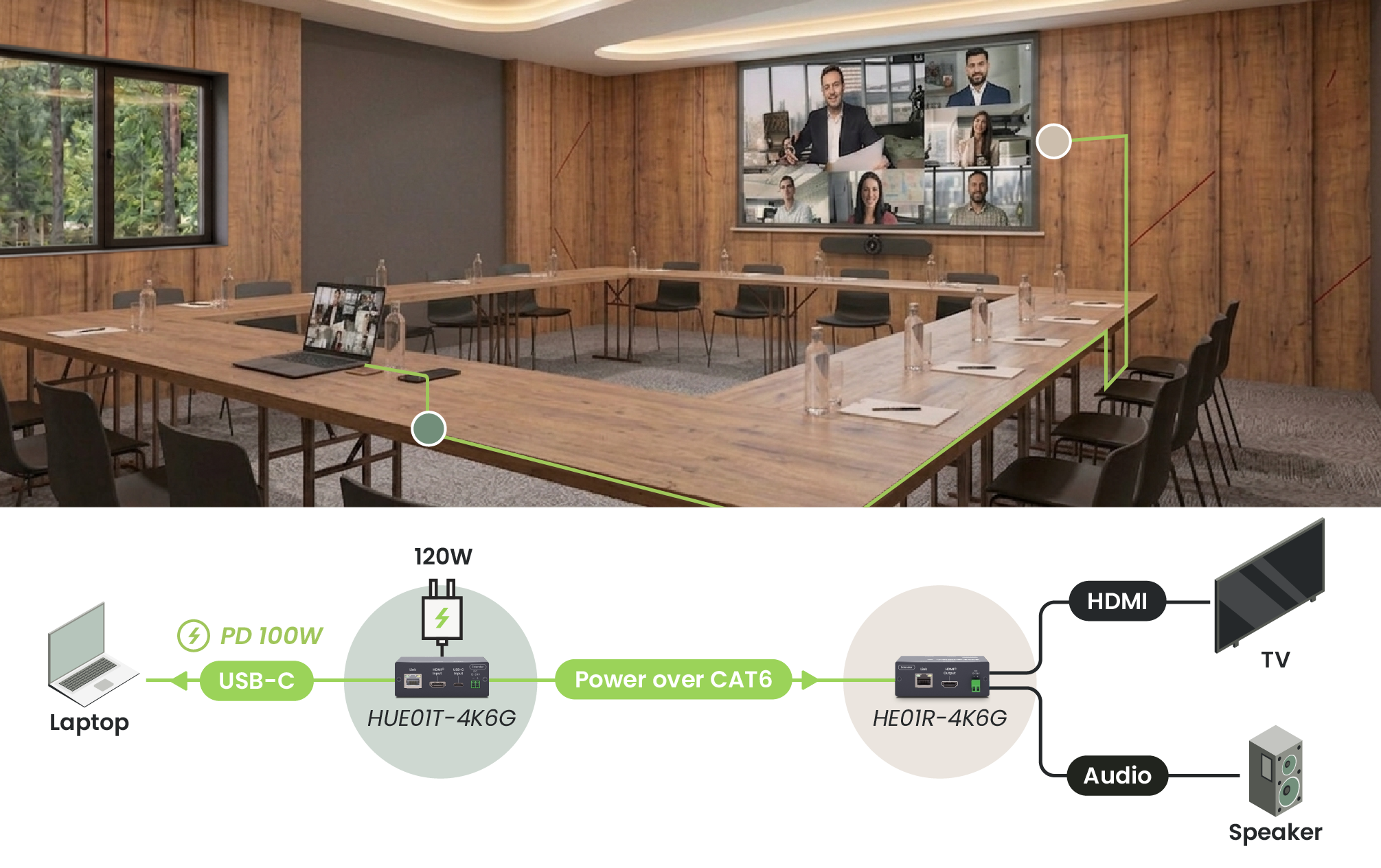

Equipped with Power over Cable (PoC) technology, the system requires only a single 12V/1A power supply. Field technicians can power the setup from either the transmitter or the receiver side, drastically reducing the hassle of finding or installing AC outlets behind displays or inside ceilings.

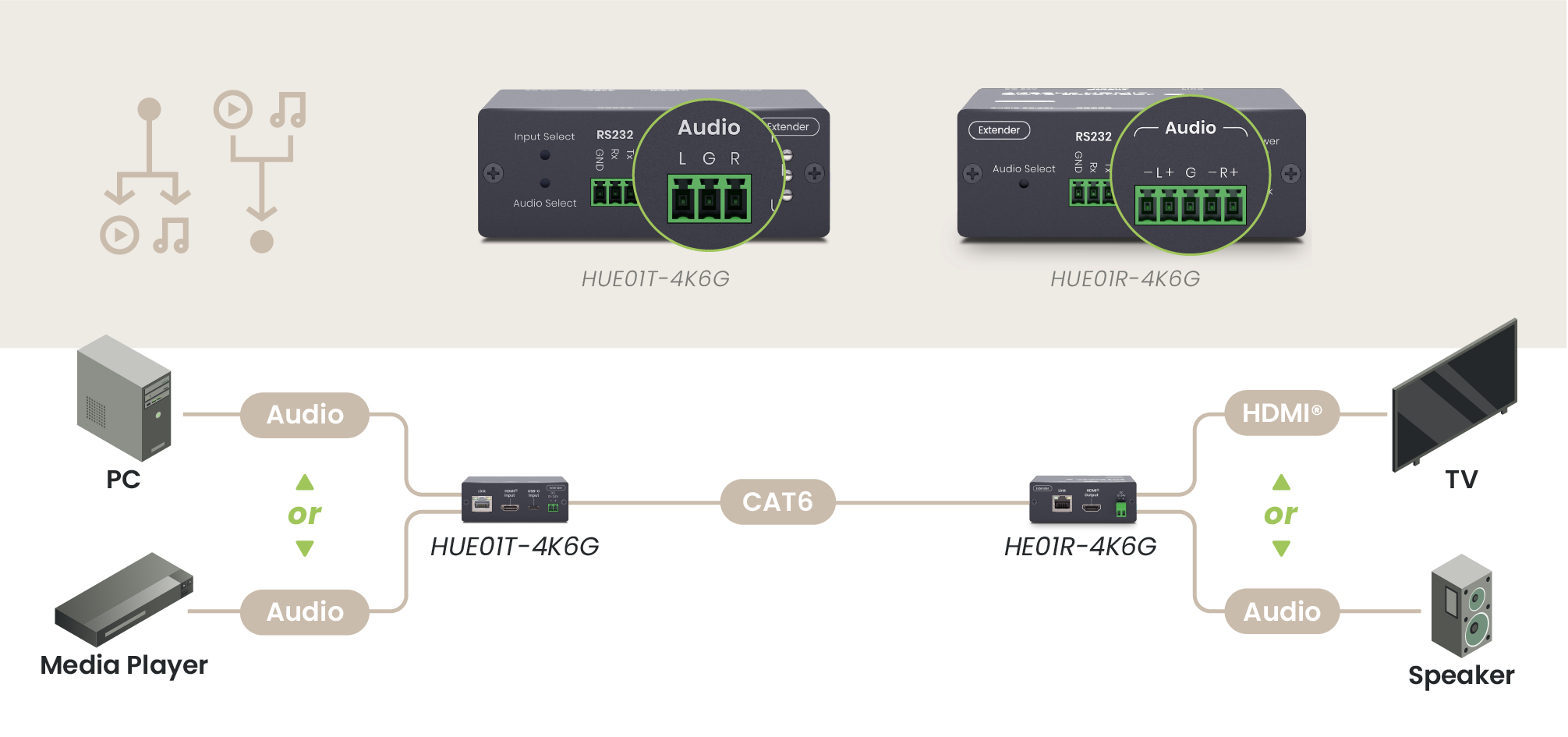

Maximize audio routing flexibility with advanced audio extraction and embedding. Besides transmitting embedded digital audio from HDMI or USB-C, you can inject external analog audio via Phoenix terminals at the transmitter, or extract decoded audio at the receiver directly into professional amplifiers and Public Address speakers.
Fully compatible with HDCP 2.2 and dynamic HDR standards (including HDR10 and HDR10+). Features built-in EDID pass-through for seamless display resolution matching and supports 115200bps high-speed RS-232 serial commands, providing system integrators with stable, centralized device management.
Release Date
Ver.
Release Note
File Name
Yes. Every HUE01-4K6G unit adheres to our strict "Verified Before Shipped" protocol. We test each device for long-distance 4K60Hz link stability, signal integrity, and power delivery to guarantee a zero-defect, out-of-the-box solution for installers.
We back our industrial-grade durability with a comprehensive 3-year factory hardware warranty. If you encounter any non-accidental hardware issues within this period, SC&T provides full factory diagnostics, professional testing, and repair support.

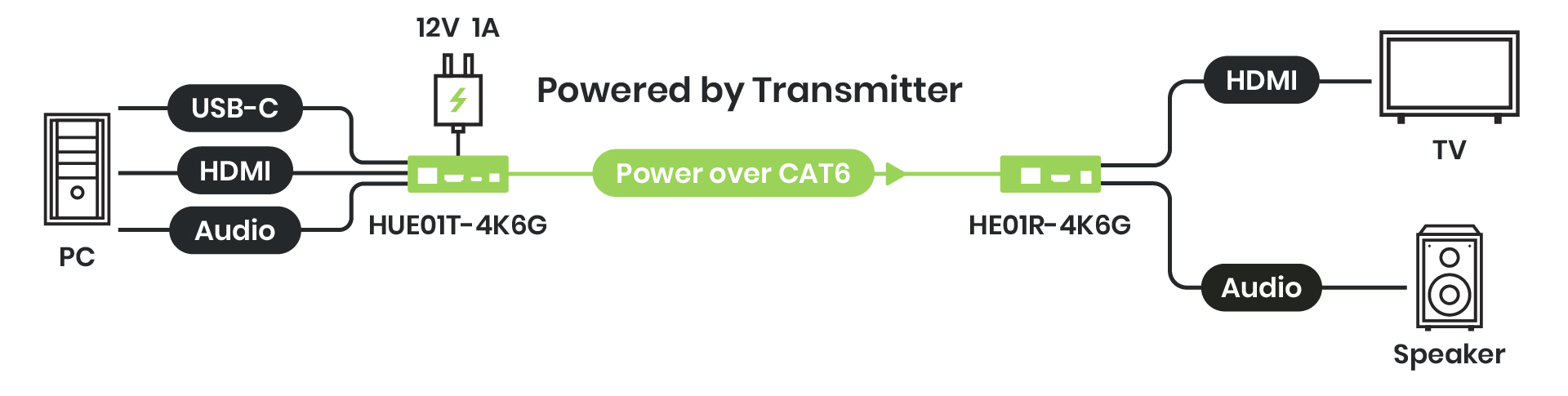

No. The system utilizes bidirectional Power over Cable (PoC) technology. You only need to connect the included 12V/1A power supply to either the transmitter or the receiver. The companion unit automatically draws stable power over the single CAT6 cable.

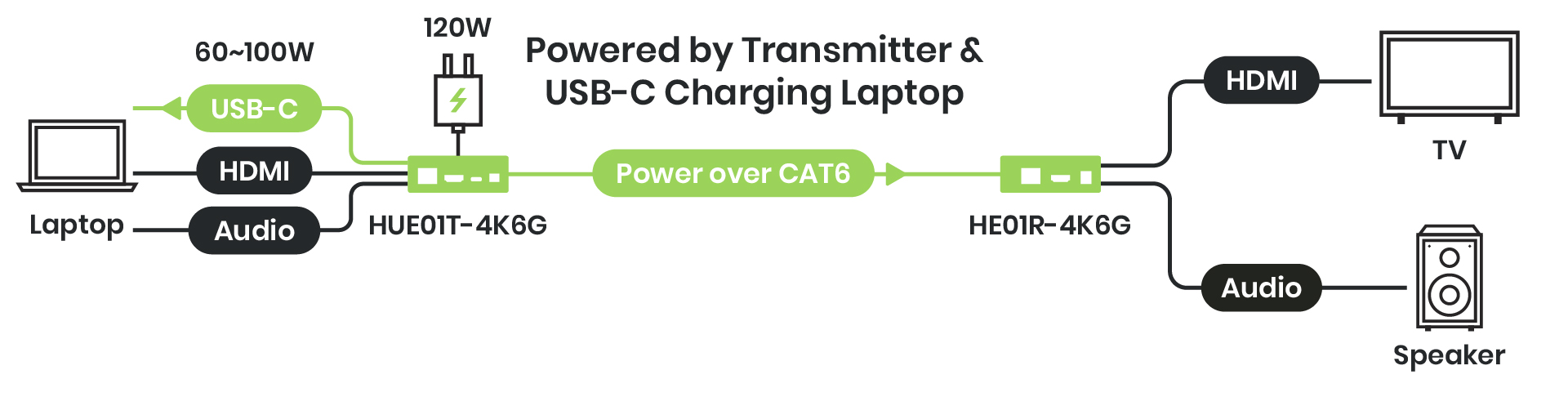

Connect our optional 24V/5A high-power adapter to the transmitter (HUE01T). When a user plugs in via USB-C, the extender activates the USB-PD 3.0 protocol, delivering 60W to 100W of reverse power to charge the laptop while simultaneously transmitting 4K video.
4K60Hz signals require high-quality cabling infrastructure. We recommend using 23AWG or 24AWG solid copper CAT6 UTP cables with properly crimped RJ45 connectors. Avoid cheap patch cords, Copper Clad Aluminum (CCA), or intermediate punch-down panels that cause signal attenuation.
By default, the built-in Auto Search logic automatically switches to the newest active input source. You can also manually override inputs using the "Input Select" button on the transmitter panel or remotely automate switching via RS-232 serial commands.
No. The USB-C port uses DisplayPort Alternate Mode (DP Alt Mode), completely dedicating its bandwidth to uncompressed 4K60Hz video, HDCP, and 100W PD charging. It does not carry native USB data signals. For KVM setups, check out SC&T's dedicated KVM extender series.
Standard
HDMI® 2.0
HDCP 2.2
Max. Video Resolution
4K60Hz
Max. Transmission Distance
70m over CAT6/ 60m over CAT5e
Dynamic Range Standard
SDR, HDR, HDR10, HDR10+
Audio Format
PCM 2CH, 5.1CH, 7.1CH
DTS 2CH, 5.1CH
Dolby Digital (AC-3)2CH, 5.1CH
Analog Audio
Impedance: 500Ω
Signal-to-noise Ratio (SNR): 114dB (A-weighted)
Dynamic Range: 114dB
THD+N: -94dB
RS232 Baud Rate
115200
Video Input
1 x HDMI Type-A
1 x USB Type-C
1 x RJ45
Video Output
1 x RJ45
1 x HDMI® Type-A
Analog Audio input
Terminal Block 3-Pin
-
Analog Audio Output
-
Terminal Block 5-Pin
RS232
Terminal Block 3-Pin
Terminal Block 3-Pin
