VHE02EIP

4K VGA/HDMI Auto-Switching & IR/RS232/POH HDBaseT Extender 70M

  • Resolution up to 1920x1200@60Hz for VGA. 4K@30Hz for HDMI.
  • Signal extension up to 70M over CAT5e (or greater) cable.
  • Embeddable TX on a wall or a table.
  • Supports PoH (Power over HDBaseT), power from either TX or RX unit.
  • Supports VGA/ HDMI auto or manual input switching.
Inquiry

As a manufacturer, we value the profit of our clients and do not have any online store. You can get the unpublished price from us through the inquiry button.

SEE other models
Inquiry

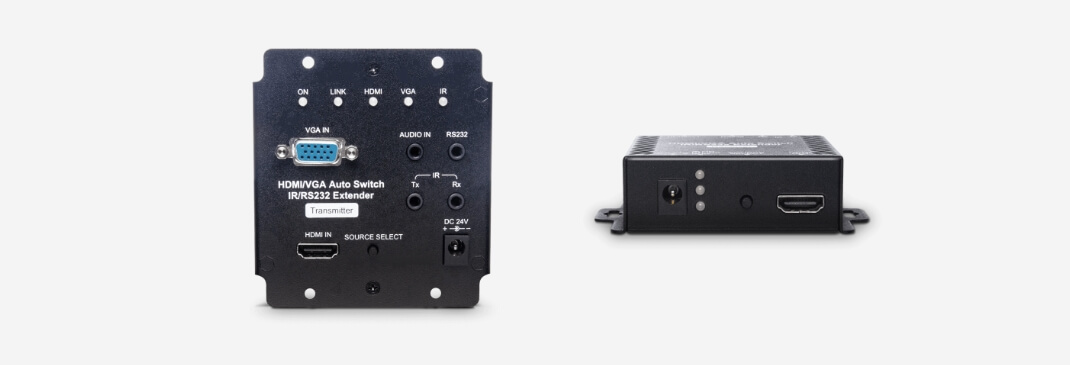

VHE02EIP is a HDMI/ VGA extender that can use an Ethernet cable to extend either HDMI or VGA with audio, bi-directional IR and RS232 signals with transmission distance up to 70M and resolution up to 4K@30Hz for HDMI, 1920 x 1200px for VGA. It is an ideal solution to send the signal from PC/laptop to display it on a projector/ monitor. With a metal face plate, the TX unit can perfectly fit on a wall or on a meeting table.

Specially Designed for Your Professional Meeting Room Projects

VHE02EIPT, VHE02EIPR

VHE02EIP is a wall plate HDMI/ VGA extender that can use an Ethernet cable to extend HDMI or VGA (with audio), bi-directional IR and RS232 signals. It is ideal for meeting room solution, bringing video & audio signals to a remote display (projector/ monitor).

Key Features

Optional Input Interfaces

Supports both HDMI and VGA video inputs.

Wall Plate Design

Easily fixed on the wall or on a meeting table.

Flexible Distance

Supports from 35 to 70M(114.8 to 229.6ft), choosing cables depending on project size and budget.

Extra Features

Supports PoH (Power over HDBaseT)

Power from either Tx or Rx unit for circumstances that have limited electrical sockets.

Supports Video Switching

Able to set up the Manual/Auto Switching between HDMI and VGA signal.

Tx and Rx Match Perfectly

Tx and Rx are designed for each other, with no compatibility issue.

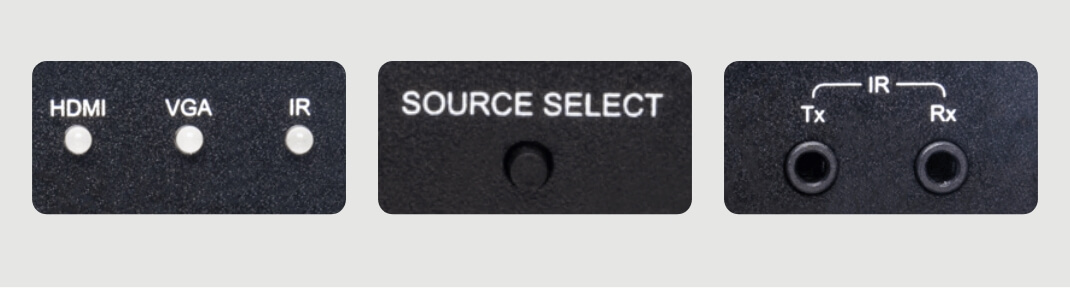

Intuitive Operation for End-user

Clear LED Indication

Easily check the LED indicators to see if the device is working properly.

Switching Button

Effortlessly press switching button to switch video between HDMI and VGA

Bi-directional IR/ RS232 transmission

Casually use IR remote/ RS232 commands to control the device at either remote or local end.

Tips to Avoid Damage

VHE02EIP has built-in surge protection to protect the devices from high voltage spike.

Additionally, here's some tips that can lower the chance of damages:

  1. Stay away from equipment with electromagnetic wave, such as mobile phone, microwave, radio equipment, fluorescent lamp, high voltage power lines.
  2. Pull cables in straight to avoid crosstalk interference and increase the transmission Stability.

Model

HKM02BP-4K

HKM02B-4K

HKM02B

VDKM02B

Video Format

HDMI

HDMI

HDMI

VGA/DVI

Resolution

4K@30Hz

4K@30Hz

1080p@60Hz

1080p@60Hz

Audio Embed & Extract

V

V

V

V

IR

V

V

V

V

RS232

V

V

V

V

PoE

V

Fiber Module

V

V

  • Resolution up to 1920x1200@60Hz for VGA. 4K@30Hz for HDMI.
  • Signal extension up to 70M over CAT5e (or greater) cable.
  • Embeddable TX on a wall or a table.
  • Supports PoH (Power over HDBaseT?), power from either TX or RX unit.
  • Supports VGA/ HDMI auto or manual input switching.
  • Supports bi-directional IR, RS232, and CEC transmission.
Firmware/Software

Release Date

Ver.

Release Note

File Name

July 27, 2021

V1.0_2108241

Firmware Upgrade
icon

Release Date

July 27, 2021

Ver.

V1.0_2108241

Firmware Upgrade
icon
Tutorial Video

Show More
icon

Specification

ITEM NO.

VHE0EIPT

VHE0EIPR

Support

Compliance

HDMI 1.4, HDCP

Max. Video Resolution

HDMI: 4096 x 2160@30Hz, VGA: 1920 x 1200@60Hz@24bits

Max. Transmission Distance

70M over CAT5e or greater cable

Video Bandwidth

9 Gbps

Audio Format

7.1 LPCM 192KHz, Dolby TrueHD, DTS-HD MA

IR Support

30-60Khz, ±10°, 5M, Bi-directional

30-60Khz, ±55°, 5M, Bi-directional

RS232 Baud Rate

115200 bps/ Full Duplex

Ports & Interfaces

Video Input

1 x HDMI Type A, 1 x VGA 15-Pin D-Sub

1 x HDBaseT

Video Output

1 x HDBaseT

1 x HDMI Type A

Analog Audio Interface

1 x 3.5mm Terminal

RS232 Interface

1 x DB9 Female

1 x DB9 Male

IR Interface

1 x 3.5mm Phone Jack

1 x 3.5mm Phone Jack
