HE04SEK

1 x 4 HDMI Distribution Amplifier CAT5e Extender Kit

  • Resolution up to 1080p@60Hz.
  • Extends and splits up to 4 HDMI signals for up to 70M.
  • No external power required for RX unit.
  • Built-in loop out port at TX unit to connect an extra HDMI display, convenient to monitor at local side.
  • Daisy chain up to 3 Tx units via the loop out port to distribute an HDMI signal to up to 12 HDMI displays.
Inquiry

As a manufacturer, we value the profit of our clients and do not have any online store. You can get the unpublished price from us through the inquiry button.

SEE other models

2-in-1

Extend and split an HDMI signal at the same time.

Expandable

Chainable up to 3 Tx units to extend and distribute up to 12 HDMI signals.

Budget Saving

Instead of long and expensive HDMI cables, you can use cost-effective network cables to reach

No Power Required

No power is required for the Rx unit, no bulky power adapter.

Inquiry

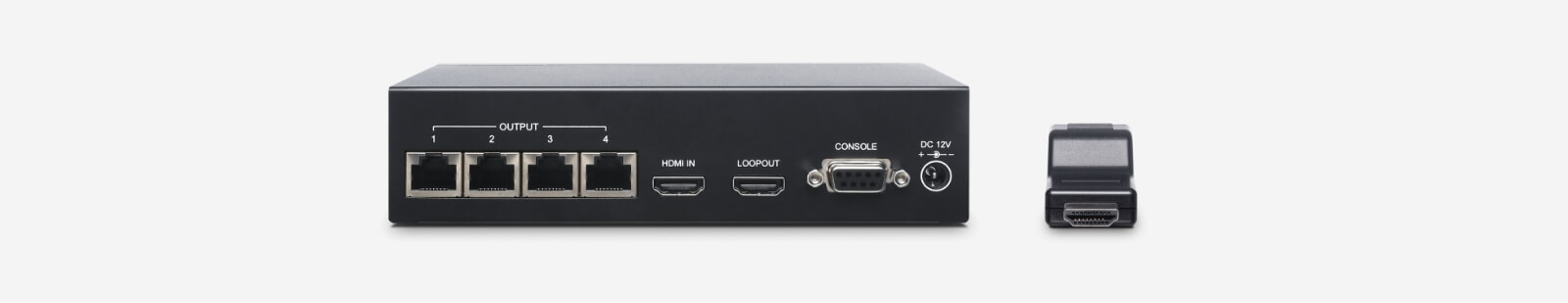

HE04SEK is a 1-in-4-out HDMI distribution amplifier that can use CAT5e (or better) cables to extend and split the signal for up to 70M. Plugin your HDMI source and you can easily use cost-effective network cables to send 4 HDMI signals to the remote ends. The transmitter (HE04SET) has a built-in HDMI loop out port that can use to connect an extra HDMI display or the next transmitter to daisy chain up to 3 pcs and split up to 12 HDMI signals. Moreover, the receiver (HE01SER) is a dongle design, allowing you to directly connect an HDMI monitor without applying an actual HDMI cable. It's the perfect solution for bars, restaurants, churches, meeting rooms, classrooms, and surveillance rooms where require signal extension and distribution at the same time.

HDMI Extension Solution for Professional Audio/Video Installation

Designing for Projects - HDMI Distribution Amplifier, No Power Required for the Receivers

SC&T's HE04SET and HE01SER provide professional installation with flexible connections for video transmission on either the transmitter or receiver side. Together, they support long-distance connections and distributions to local and remote displays like PC monitors, TVs, projectors, and more. The HE04SET and HE01SER offer system integrators a flexible, and easy installation, enabling an enhanced monitoring work or learning experience for enterprise, education, and government clients.

Extending, Distributing at the Same Time

Need More Distance?

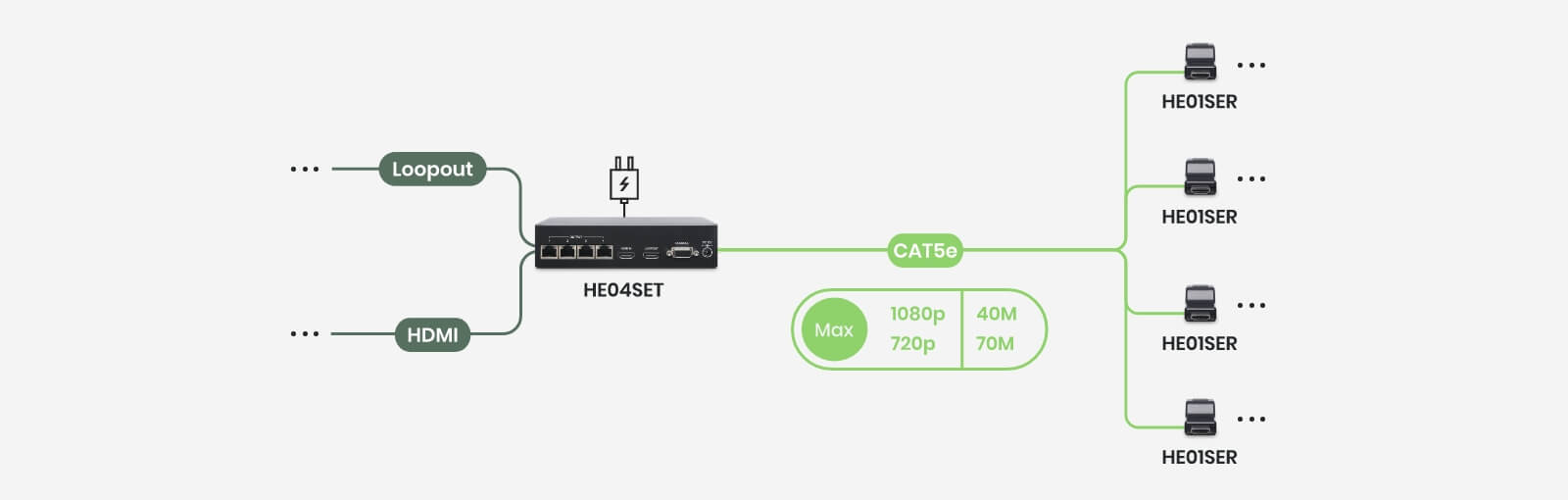

Extending over CAT5e Cables

You can use cost-effective CAT5e (or better) cables to extend a 1080p HDMI signal for up to 40M.

Repeating Your HDMI Signal

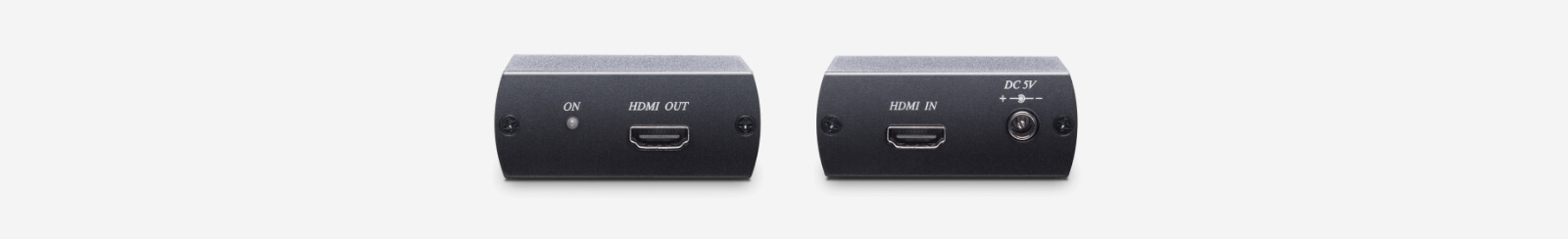

If 40M is not sufficient for the connection, you can add more distance with HR01 (each piece extend 50M further)

HR01

Need More Monitors?

Stackable

The transmitter has a built-in HDMI loop-out port that can connect to the next same transmitter (Max. 3 pcs) to have up to 12 HDMI outputs for remote displays.

Local Loop-Out

The loop-out port can also connect to an HDMI monitor on the local side, providing extra views for not only the people from distance but those on the local end.

User-Friendly Design

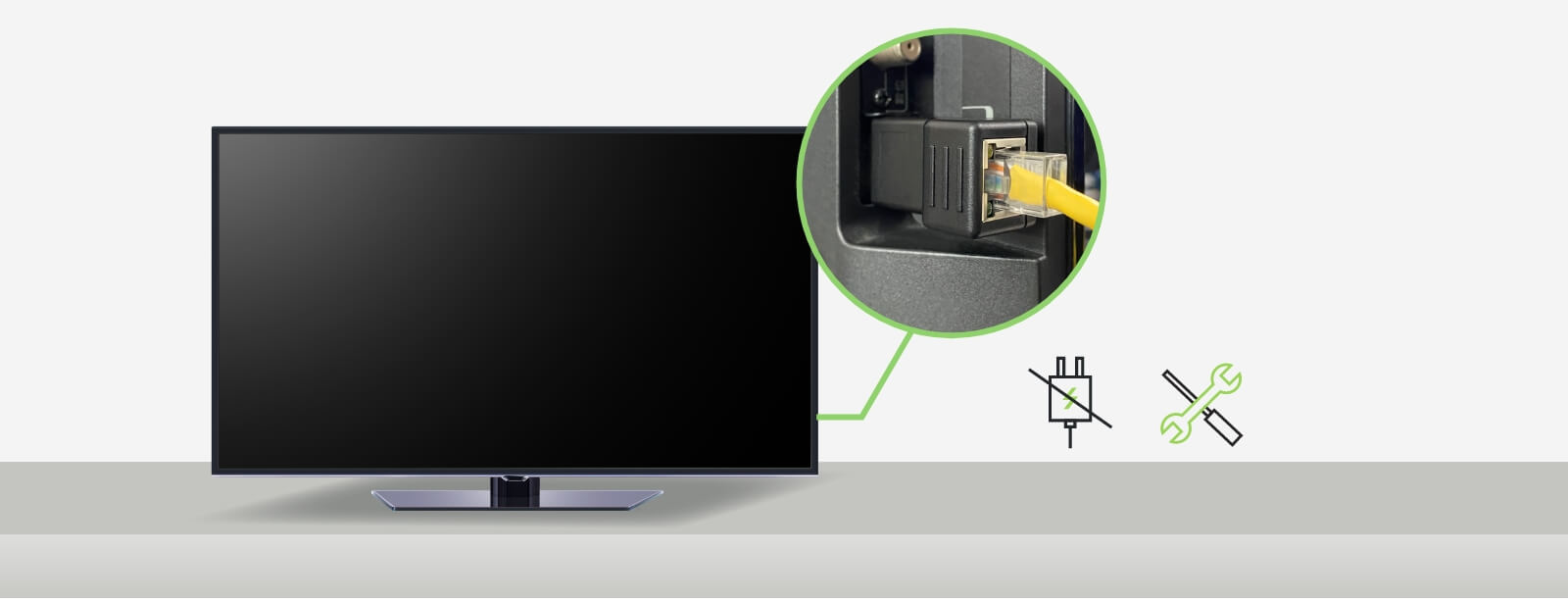

Easy Installation

Dongle design allows you to directly plug in the HDMI input of an HDMI monitor without an actual HDMI cable.

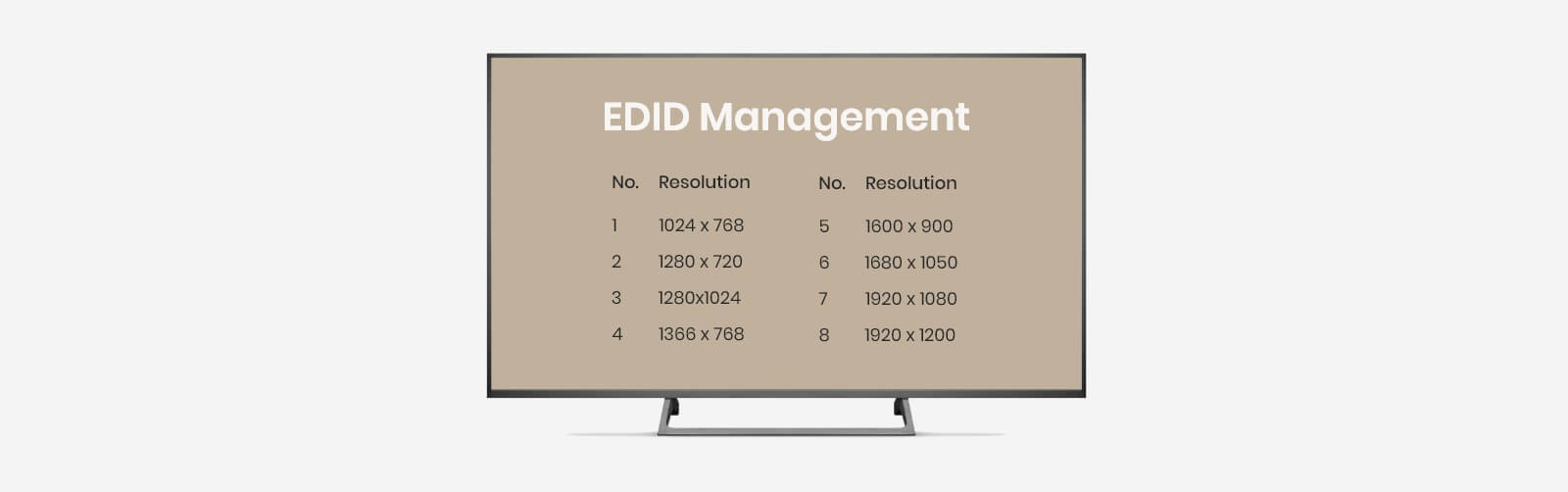

EDID Management

Providing a variety of EDID options to choose from, which allows your videos to fit in displays with different resolutions supported.

RS232 Control

You can turn on/ off HDMI monitors on the remote end by simply typing in RS232 commands.

Model

HKM02BP-4K

HKM02B-4K

HKM02B

VDKM02B

Video Format

HDMI

HDMI

HDMI

VGA/DVI

Resolution

4K@30Hz

4K@30Hz

1080p@60Hz

1080p@60Hz

Audio Embed & Extract

V

V

V

V

IR

V

V

V

V

RS232

V

V

V

V

PoE

V

Fiber Module

V

V

  • Resolution up to 1080p@60Hz.
  • Extends and splits up to 4 HDMI signals for up to 70M.
  • Built-in loop out port at TX unit to connect an extra HDMI display, convenient to monitor at local side.
  • Daisy chain up to 3 Tx units via the loop out port to distribute an HDMI signal to up to 12 HDMI displays.
  • Easy installation, no external power required for the Rx unit to function.
  • Dongle design, the Rx unit can directly plug in an HDMI female connector without HDMI cable applied.
  • Supports CEC to use remote to control the HDMI display connected to the HDMI loop out port.
  • Supports RS232 transmission, control remote HDMI monitors via RS232 commands.
  • Supports EDID management to switch desire resolutions for connected displays.
Local Display
Extending an HDMI source for 70M away and using the dongle type receiver (HE01SER) to directly connect to an HDMI monitor. The loop out port can also connect an extra HDMI monitor for a local user.

Stackable

Firmware/Software

Release Date

Ver.

Release Note

File Name

January 7, 2020

V1.0_2001071

Firmware Upgrade
icon

Release Date

January 7, 2020

Ver.

V1.0_2001071

Firmware Upgrade
icon
Tutorial Video

Show More
icon

Specification

ITEM NO.

HE04SET

HE01SER

Support

Compliance

HDMI 1.4, CEC

Max. Video Resolution

1080p@60Hz

Max. Transmission Distance

40M over CAT5e or Greater

RS232 Baud Rate

57600 bps

Audio Format

AC3, DTS, Dobly TrueHD, DTS-HD

Ports & Interfaces

Video Input

1 x HDMI Type A

1 x RJ45

Video Output

4 x RJ45

1 x HDMI Type A

Video Loop-out

1 x HDMI Type A

-

RS232 Interface

1 x DB9 Female

-

Power Interface

1 x DC Jack

1 x Micro USB
